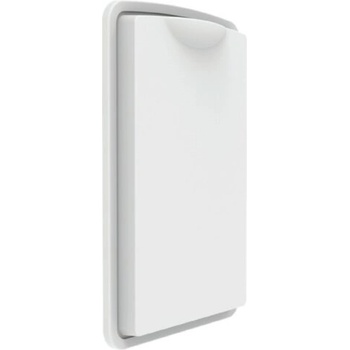

Mimosa A6

Mimosa А6 100-00113



A6
High Throughput

The A6 redefines efficiency, performance, capacity, and interference handling for unlicensed PTMP deployments. With advanced features like 1024-QAM, 8-stream beamforming, and support for up to 160 MHz of bandwidth, it delivers significant improvements in reliability and performance for the unlicensed 5/6 GHz band.



Improved Link Budget

Whether it’s overcoming noise or punching through a bit more near-LOS foliage, who wouldn’t want an improved link-budget? The A6 uses a series of integrated antennas and introduces a set of new baseband features that provide 10 dB signal improvement without an increase in the device form-factor.





Speed and Capacity for Dense Markets and Crowded Towers

Th A6 competes with fiber speed offerings in both urban and rural tower sites. Wi-Fi 6E technologies included within the A6 offer 60 bps/Hz spectral efficiency and high capacity 8x8 multi-user MIMO technology, ensuring sufficient AP capacity to handle large populations at almost any rural tower location, or even in the most dense city urban environments





Category SpecificationRa dio  MIMO & Modulation 8x8 MU-MIMO; OFDMA (future release), BPSK-1024QAMBandwidth Single or dual 20/40/80/160 MHz channelsFrequency Range 5150–6425 MHz (Restricted by country)Max Output Power 24 dBm (Restricted by country)Rx Sensitivity @ 1024 QAM -47 dBm @ 160 MHz, -50 dBm @ 80 MHz, -53 dBm @ 40 MHz, -56 dBm @ 20 MHzPhysical  Dimensions Height: 490 mm (19), Width: 295 mm (11.6), Depth: 75 mm (3)Weight 3.95 kg (8.7 lbs)Enclosure Characteristics Outdoor UV-stabilized, engineered polymer with integrated metal mounting backWind Survivability 200 km/h (125 mph)Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)Mounting Includes dual adjustable mounting brackets for 30 mm (1.18) to 90 mm (3.54) OD pipesNetwork Interface (1) GbE copper PoE, (2) 10 GbE SFP+ (optical)Antenna  Gain 16 dBiBeamwidth 90º azimuth, 10º elevationFront-to-Back Ratio >30 dBCross-Polar Isolation >20 dBPolarization Dual-linear XPICPower  Max Power Consumption 40 WSystem Power Method PoE port, or via a separate DC portSystem Lightning & ESD Protection 6 kVPoE Power Requirements Passive, 48-56vdc @ 1200mAEnvironmental  Outdoor Ingress Protection Rating IP67Operating Temperature -40°C to +55°C (-40°F to 131°F)Operating Humidity 5 to 100% condensingOperating Altitude 4,420 m (14,500’) maximumShock and Vibration ETS 300-019-2-4 class 4M5Features  10 Gigabit Ethernet (2) SFP+ (optical), MM or SMManagement Services MMP support; Netconf (future support); SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI; IPv4 and IPv6Smart Spectrum Management Active scan monitors/logs ongoing RF interference across all channels (no service impact); Dynamic auto-optimization of channel and bandwidth useSecurity WPA3; AES; RADIUS; 802.1x authorizationQoS Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); CoS Classifier, with user-configurable precedenceVLAN Per subscriber VLAN, Q-in-Q, Management VLANCollocation Synchronization 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratioGPS Location GNSS-1 (GPS + GLONASS)
