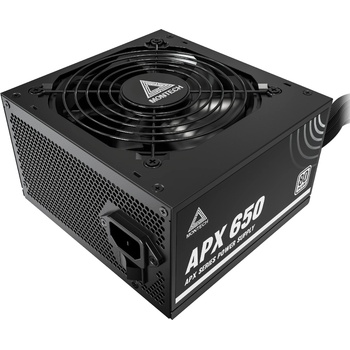

MONTECH APX 650W 80 PLUS White

Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX.



Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.



Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.



Specifications

Wattage 650Form Factor ATX (140)80 PLUS Efficiency WhiteInput Full RangeDimensions (L*W*H) 140*150*86mmFan Size 120mmBearing HDBOperating Temperature 0-40°CProtections OPP / OVP / UVP / SCP / OCP / OTPCertification CB / CE / EAC / FCC / RCM / RoHS / cTUVus / TUV / UKCA



AC/DC AC Input 100-240Vac 50-60Hz 12A MaxDC Output +3.3V +5V +12V -12V +5VSBMax. Output Current 18A 18A 54.1A 0.3A 2.5AMax. Output Power 100W 649.2W 3.6W 12.5WTotal Power 650W



Cables< /p>Cable Type Number of Cable (s) Connector (s) per CableMotherboard 1 1 (20+4 Pins)CPU 1 2 (4+4 Pins)PCIe 1 2 (6+2 Pins)SATA 2 3Molex 1 3
