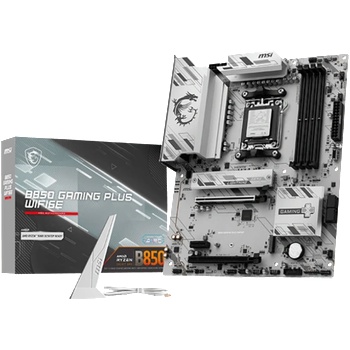

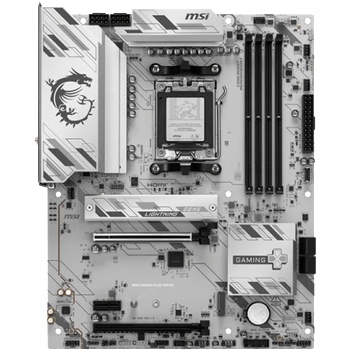

MSI B850 GAMING PLUS WIFI6E

Технически детайли

USB:4x USB 2.0 (Front);4x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);3x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front)
Manufacturer:MSI
Wireless:Wi-Fi 6E Solution;The Wireless module is pre-installed in the M. 2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax;Supports Bluetooth® 5.3, FIPS, FISMA
Memory type:4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only
Features:LED FEATURE: 4x EZ Debug LED;1x EZ Memory Detection LED
CPU's supported:Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset:AMD B850
Bluetooth:5.3
Graphics:1x HDMI;Support HDMI 2.1, maximum resolution of 4K 60Hz;1x DisplayPort;Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Expansion Slots:2x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 slot; Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Storage:2x M. 2;M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;M. 2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;M2_1 slot; Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors);M2_2 slot; Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors); Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors);Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;Supports RAID 0 and RAID 1 for M. 2 NVMe storage devices
I/O:Clear CMOS Button;DisplayPort 1.4;2.5G LAN;USB 10Gbps (Type-A);Wi-Fi / Bluetooth;HD Audio Connectors;Flash BIOS Button;HDMI;USB 10Gbps (Type-A);USB 10Gbps (Type-C);USB 5Gbps (Type-A)
Connectors:1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);4x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x Tuning Controller connector(JDASH);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports
Audio:Realtek® ALC897, 7.1-Channel High Definition Audio
LAN:Realtek® 8125D 2.5G LAN
Form Factor:ATX, 243.84mmx304.8mm
OS:Support for Windows® 11 64-bit
Сайт на производителя:https://www. msi. com/Motherboard/B850-GAMING-PLUS-WIFI6E
Разширено търсене:MSI B850 4xDDR5 4xSATA3 RAID HDMI DP2xM2 GLAN2xPCIEx16 1xPCIEx1 WiFi
