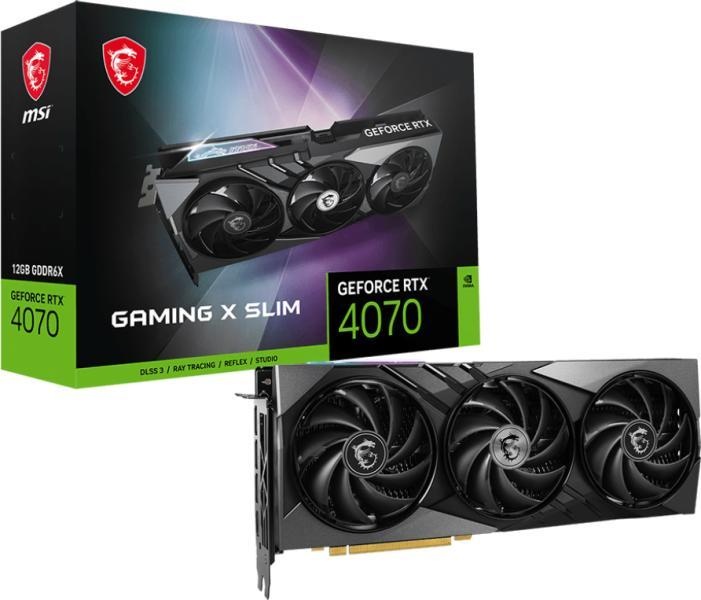

MSI GeForce RTX 4070 GAMING X SLIM 12GB GDDR6X 192bit (V513-251R)

MSI GeForce RTX 4070 Gaming X Slim

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• 2610 MHz / 21 Gbps


• 12GB GDDR6X


• DisplayPort x 3 (v1.4a)

  HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

TRI FROZR 3 Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.


• Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.


• Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.


• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Afterburner

• Take full control with the most recognized and widely used graphics card overclocking software in the world.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.



Gaming Unbound

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.







HASSLE-FREE COMPATIBILITY

Lightened design is made for those building a gaming rig with space constraints.



Powered by GeForce RTX 40 Series and DLSS 3

The Ultimate Platform for Gamers and Creators



AIRFLOW CONTROL

Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.



YOUR SUPPORT CHARACTER

A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.



Specifications:

Graphics Processing Unit NVIDIA® GeForce RTX 4070

Interface PCI Express® Gen 4

Core Clocks

Extreme Performance: 2625 MHz (MSI

Center)

Boost: 2610 MHz

CUDA® CORES 5888 Units

Memory Speed 21 Gbps

Memory 12GB GDDR6X

Memory Bus 192-bit

Output

DisplayPort x 3 (v1.4a) HDMI x 1 (Supports

4K@120Hz HDR and 8K@60Hz HDR and

Variable Refresh Rate (VRR) as specified in

HDMI 2.1a)

HDCP Support Y

Power consumption 215W

Power connectors 16-pin x 1

Recommended PSU 650W

Card Dimension (mm) 307 x 125 x 46 mm

Weight (Card / Package) 988 g / 1750 g

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC® technology Y

Digital Maximum Resolution 7680 x 4320
