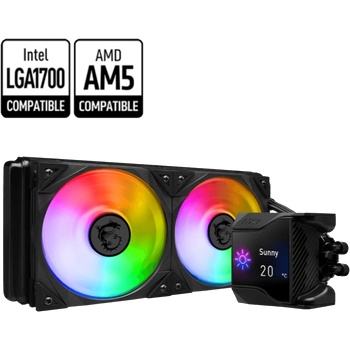

MSI MAG Coreliquid D240 (936-6A1611-003)

MSI MPG CORELIQUID D240

• MSI's TORX FAN 4.0 provides supreme cooling to the radiator.
• 60 mm TORX FAN 3.0 within the water block provides heat dissipation to the power solutions.
• 2.4 Customizable IPS display: hardware monitor, video & image upload, system clock and live weather.
• The fan and pump speed can be independently controlled according to different user scenarios.
• Latest CPU socket supported: Intel LGA 1700 & AMD AM5.
• A three-layer mesh plastic tube slows down the evaporation speed of water cooling liquid.

Unrivaled Rapid Cooling

MSI’s exclusive TORX FAN 4.0 provides concentrated airflow to the radiator for the most rapid heat dissipation.

2.4 CUSTOMIZABLE IPS DISPLAY

The MPG CORELIQUID D Series comes with a 2.4 IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.

EVAPORATION PROOF TUBING

MPG CORELIQUID D Series’ tubing is constructed with three layers of netted plastic with a reinforced mesh exterior.

Tech specs:

Radiator Size 240 mm
Radiator Dimensions (WxDxH) 273 x 120 x 27 mm
Radiator Material Aluminum
Water Cooling Tube Material Black Rubber + Mesh
Number of Fans 2
Fan Dimensions (WxDxH) 120 x 120 x 25 mm
Fan Air Flow 77.4 CFM
Fan Bearing Two Ball Bearing
Fan Life Expectancy 100,000 Hours
Fan Rated Current 0.28A (MAX)
Fan Power Consumption 3.36W (MAX)
PWM Mode Yes
Cable Length (PWM Cable) 350 mm
Fan Connector 4-pin PWM
Fan Lighting ARGB
RGB Connector 3-pin
Pump Life Expectancy 50,000 Hours
Pump Noise Level 21.2 dBA
Pump Rated Current 0.3 A
Pump Power Consumption 4 W
Pump Speed 2800 ± 300 RPM (PWM controlled)
Pump Connector 4-pin PWM
Cold Plate Material Copper
Block Dimensions (WxDxH) 95 x 95 x 83.53 mm
Intel Socket Support LGA 1700 / 1200 / 1156 / 1155 / 1151 / 1150
AMD Socket Support AM5 / AM4 TR4 / sTRX4
Panel Size 2.4"
Panel Type IPS
Panel Resolution 320 x 240
Panel Brightness 500 nits
Interface Connector USB 2.0 pin header
Power Connector SATA
