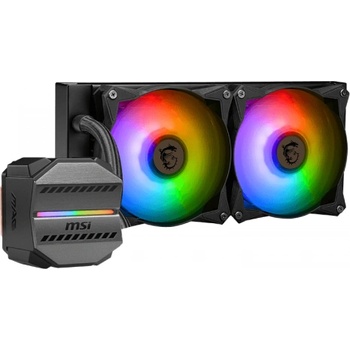

MSI MAG CORELIQUID M240 ARGB 120mm 306-7ZW4R14-813

MSI MAG Coreliquid M240

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Elevated Copper Plate

The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.

Pump Motor Resonance Elimination

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION

The radiator has a 12 pathway designed to help rapidly dissipate heat.

MYSTIC LIGHT COMPATIBLE

Show off your colors with full ARGB customization on the fans and cooling block.

SPECIFICATIONS
Radiator Size

240 mm

Radiator Dimensions (WxDxH)

277 x 120 x 27mm

Radiator Material

Aluminum

Water Cooling

Tube

Material Black

Rubber + Mesh

Number of Fans

2

Fan Dimensions (WxDxH)

120 x 120 x 25mm

Fan Air Flow

21.63 ~ 78.73 CFM

Fan Bearing

Two Ball Bearing

Fan Life Expectancy

70,000 Hours

Fan Rated Current

0.35A

Fan Power Consumption

4.2W

PWM Mode

YES

Cable Length (PWM Cable)

350mm

Fan Connector

4-Pin

Fan Lighting

ARGB

Pump Life Expectancy

100,000 Hours

Pump Noise Level

20 dBA

Pump Rated Current

0.38A

Pump Power Consumption

4.56W

Pump Speed

3100 RPM ± 10%

Pump Connector

3 Pin

Cold Plate Material

Copper + Plastic

Block Dimensions (WxDxH)

67.26 x 59.95 x 55.9 mm

Intel Socket Support

LGA 1150/1151/1155/1156/1200/1700/2011/2011- 3/2066


AMD Socket Support

AM5/AM4
