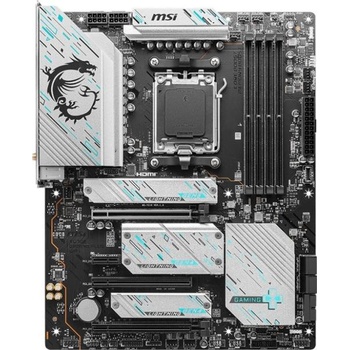

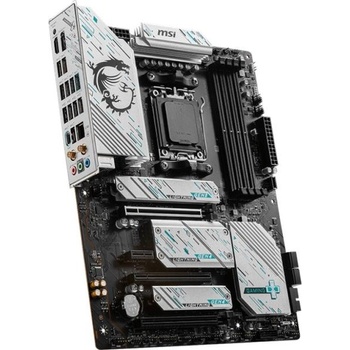

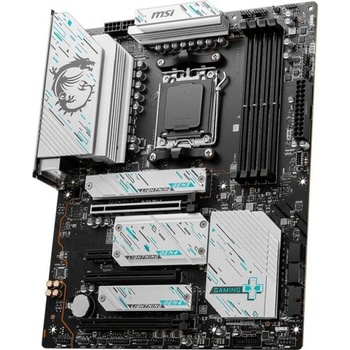

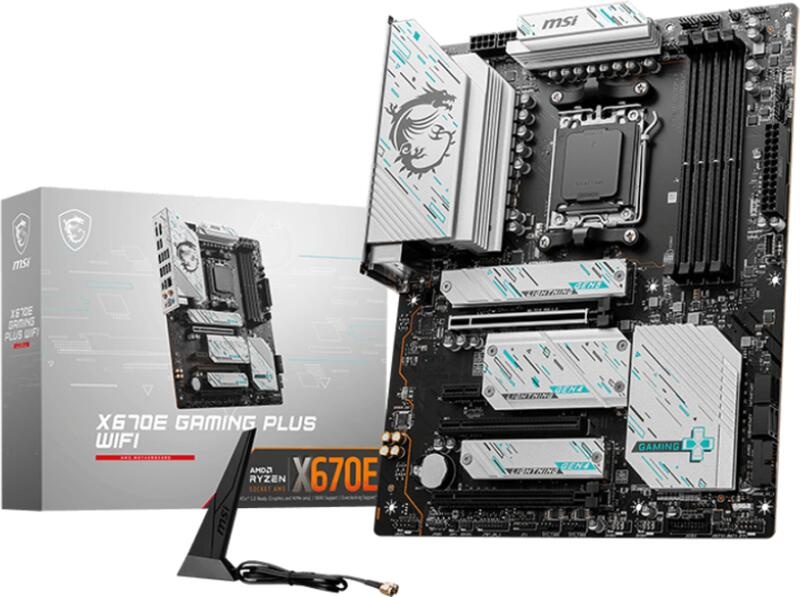

MSI MAG X670e Gaming Plus Wifi



MSI X670E GAMING PLUS WIFI















Tech specs:

Chipset AMD X670
 CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5
 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7800+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
 Onboard Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
 Slot 3x PCI-E x16 slot
Supports x16/x1/x4
Supports x16/x1/x4 (For Ryzen 7000 Series processors)
Supports x8/x1/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
Supports x4/x1/x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

 Storage 4x M. 2
M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M. 2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M. 2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
 RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M. 2 NVMe storage devices
 USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
 LAN Realtek RTL8125BG 2.5Gbps LAN
 WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M. 2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
 Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

 Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
 LED FEATURE 4x EZ Debug LED

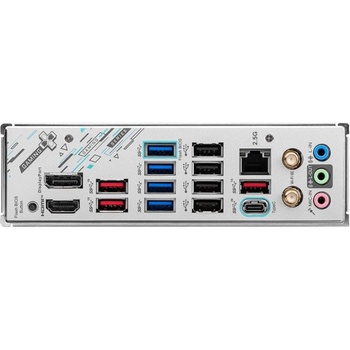

 BACK PANEL PORTS

1. DisplayPort
2. USB 3.2 Gen 2 10Gbps (Type-A)
3. USB 3.2 Gen 1 5Gbps (Type-A)
4. USB 2.0 (Type-A)
5. 2.5G LAN
6. Flash BIOS Button
7. HDMI
8. USB 3.2 Gen 2x2 20Gbps (Type-C)
9. Wi-Fi / Bluetooth
10. Audio Connectors



OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
 PCB Info ATX
243.84mmx304.8mm
