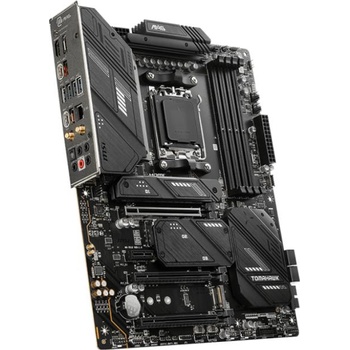

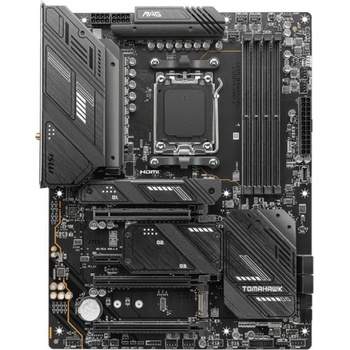

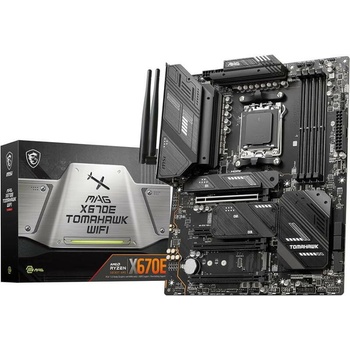

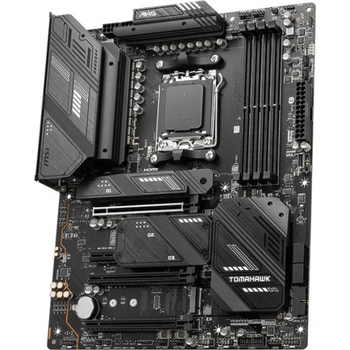

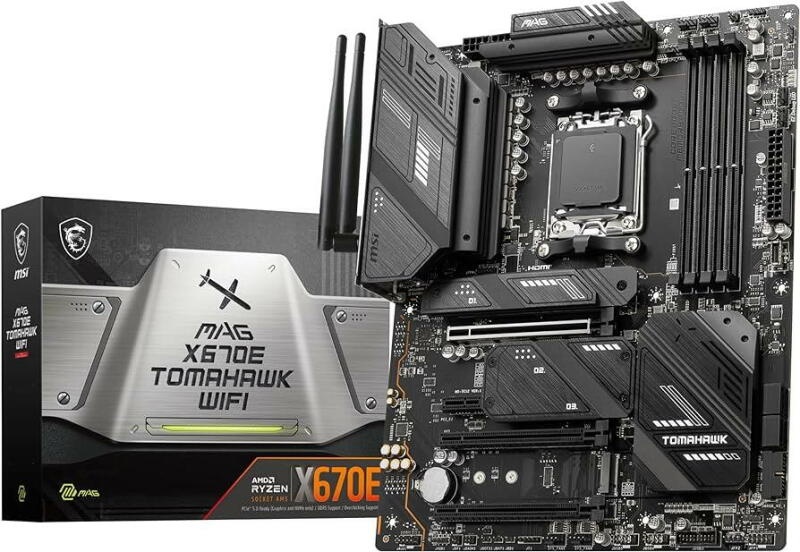

MSI MAG X670E TOMAHAWK WIFI

MSI MAG X670E Tomahawk Wi-Fi



The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.



Tech specs

Chipset
AMD X670

CPU SUPPORT
Supports AMD Ryzen 7000 Series Desktop Processors

Socket AM5

Memory
4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

1DPC 1R Max speed up to 6000+ MHz

1DPC 2R Max speed up to 6000+ MHz

2DPC 1R Max speed up to 6000+ MHz

2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Onboard Graphics
1x HDMI

Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort

Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
3x PCI-E x16 slot

Supports x16/x4/x2

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)

PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)

*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.

Storage
4x M. 2

M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M. 2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, and RAID 10 for M. 2 NVMe storage devices

USB
4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

2x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN
Realtek RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH
AMD Wi-Fi 6E

The Wireless module is pre-installed in the M. 2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio
Realtek ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Internal I/O
1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE
4x EZ Debug LED

BACK PANEL PORTS

1. DisplayPort


2. USB 3.2 Gen 2 10Gbps (Type-A)


3. USB 3.2 Gen 2 5Gbps (Type-A)


4. 2.5G LAN


5. Wi-Fi / Bluetooth


6. Audio Connectors


7. Flash BIOS Button


8. HDMI


9. USB 3.2 Gen 2 10Gbps (Type-C Display port)


10. USB 3.2 Gen 2x2 20Gbps (Type-C)


11. S/PDIF-Out

OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit

PCB Dimension (W × L)
ATX

243.84mmx304.8mm
