MSI MEG Z890 ACE

Допълнителни снимки на продукта:

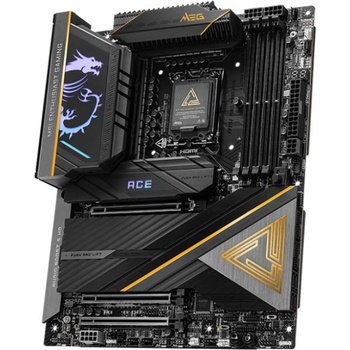

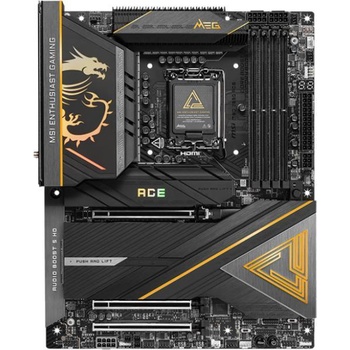

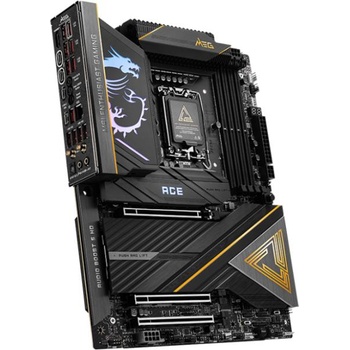

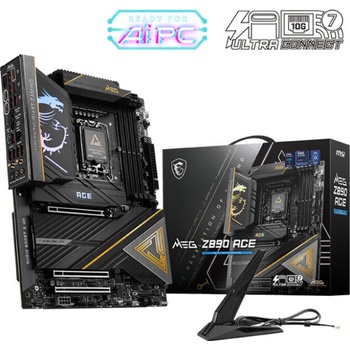

Снимка 1 Снимка 2 Снимка 3 Снимка 4
MSI MEG Z890 ACE /LGA1851

Manufacturer: MSI
Wireless: Intel® Killer BE1750x Wi-Fi 7;The Wireless module is pre-installed in the M. 2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency; 1DPC 1R Max speed up to 9200+ MT/s; 1DPC 2R Max speed up to 7200+ MT/s; 2DPC 1R Max speed up to 4800+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s;Supports Intel® POR Speed and JEDEC Speed;Supports Memory Overclocking and Intel® XMP 3.0;Supports Dual-Controller Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM
Features: 4x EZ Debug LED;1x EZ Digit Debug LED;1x EZ LED Control switch
CPU's supported: Supports Intel® Core Ultra Processors (Series 2) LGA 1851
Chipset: INTEL Z890
Bluetooth: 5.4
Graphics: 1x HDMI;Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz;2x Type-C DisplayPort;Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Expansion Slots: 3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4; PCI_E2 support manual BIOS adjustment to X4+X4
Storage: 5x M. 2;M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;-M. 2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;-M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;-M. 2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices;-M. 2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices;4x SATA 6G;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M. 2 NVMe storage devices
I/O: 2x Thunderbolt4 ports (Rear);Support up to 40Gbps transfer rate with Thunderbolt devices;Support up to 20Gbps transfer rate with USB4 devices;Support up to 10Gbps transfer rate with USB 3.2 devices;Support up to 5V/3A, 15W power charging;Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices;Support up to 8K display;4x USB 2.0 (Front);4x USB 5Gbps Type A (Front);11x USB 10Gbps Type A (Rear);2x USB 10Gbps Type C (Rear);1x USB 20Gbps Type C (Front);* To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
Connectors: 1x Thunderbolt5 card connector(JTBT5, support RTD3);1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin);1x Front Type-C Quick Charge Connector(PD_PWR1);1x CPU Fan;2x Combo Fan (Pump_Sys Fan);5x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Water Flow connector;1x Slow Mode Booting Jumper(JSLOW);1x Front Audio (JAUD);2x Thermal Sensor connectors(T_SEN);1x Tuning Controller connector(JDASH);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);V-check point;4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 20Gbps Type C ports
Audio: Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA;7.1-Channel USB High-Performance Audio;Supports S/PDIF output;Supports up to 32-Bit/384 kHz playback on front panel
LAN: 1x Marvell® AQC113CS 10Gbps LAN
Form Factor: ATX 243.84mmx304.8mm
OS: Support for Windows® 11 64-bit
Warranty: 36 Months



.
