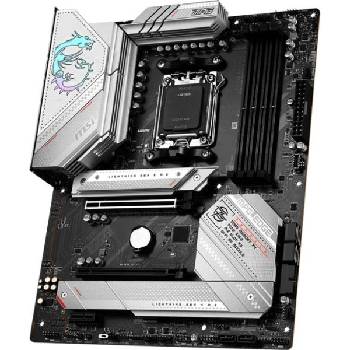

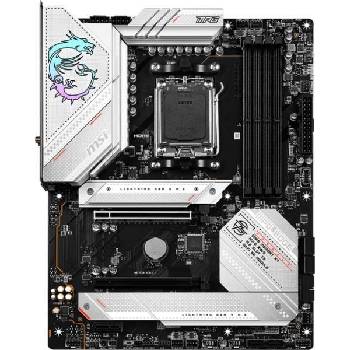

MSI MPG B650 EDGE WIFI

MPG B650 EDGE WIFI

SPECIFICATIONS

Chipset
AMD B650

CPU SUPPORT
Supports AMD Ryzen 7000 Series Desktop Processors

Socket AM5

Memory
4x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

1DPC 1R Max. speed up to 6600+ MHz

1DPC 2R Max. speed up to 6000+ MHz

2DPC 1R Max. speed up to 6400+ MHz

2DPC 2R Max. speed up to 4000+ MHz

Support Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Onboard Graphics
1x HDMI

1x DisplayPort

Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz*

Support DP 1.4 HBR3, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage
3x M. 2

M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M. 2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M. 2 NVMe storage devices

* SATA_A1~A2 do not support RAID function.

USB
2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN
Realtek ® RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH
AMD Wi-Fi 6E

The Wireless module is pre-installed in the M. 2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth ® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Audio
Realtek ® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O
1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE
4x EZ Debug LED

1x EZ LED Control switch

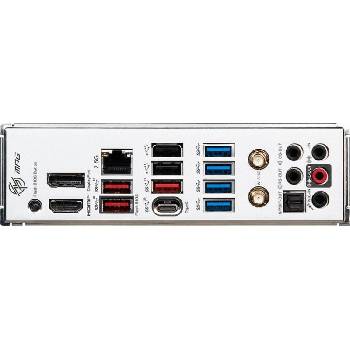

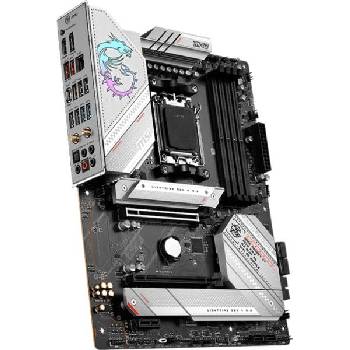

BACK PANEL PORTS

1. Display Port


2. 2.5G LAN


3. USB 2.0 (Type-A)


4. Wi-Fi / Bluetooth


5. Audio Connectors


6. Flash BIOS Button


7. HDMI


8. USB 3.2 Gen 2 10Gbps (Type-A)


9. USB 3.2 Gen 2x2 20Gbps (Type-C)


10. USB 3.2 Gen 1 5Gbps (Type-A)


11. Optical S/PDIF Out

OPERATING SYSTEM
Support for Windows ® 11 64-bit, Windows ® 10 64-bit

PCB Dimension
ATX

243.84mmx304.8mm
