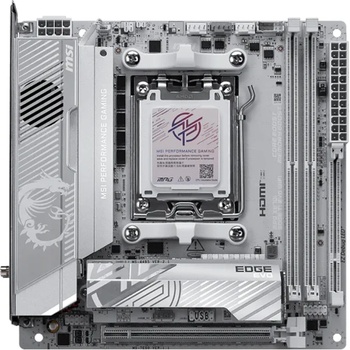

MSI MPG X870I EDGE TI EVO WIFI (7E50-001R)

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI engine:
Provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN manager:
Optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling:
Automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost:
An MSI exclusive feature. It overclocks NPU to improve higher AI performance.

Specifications

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
AMD Socket AM5

Chipset
AMD X870

Expansion slots
1x PCIe 5.0 x16 slot

Display Interface
Support 4K@60Hz as specified in HDMI 2.1, 2x USB4 ports support USB Type-C display outputs
– Requires Processor Graphics

Internal IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Memory Support
2 DIMMs, Dual Channel DDR5
1DPC 1R Max speed up to 8400+ MT/s
1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* The DIMM slots on this motherboard only have single-sided latches.
** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
*** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www. msi. com/support/.

Storage
1x M. 2 Gen5 x4 128Gbps slot
2x M. 2 Gen4 x4 64Gbps slots (1 via 5-in-1 Xpander Card)
2x SATA 6Gbps ports (via 5-in-1 Xpander Card)
M. 2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M. 2_2 slot (From X870 chipset)
Supports up to PCIe 4.0 x4
Supports 2280 storage devices
Supports single sieded M. 2 SSD only
5-in-1 XPANDER Card
M. 2_3 slot (From X870 chipset)
Supports up to PCIe 4.0 x4
Supports 2280 storage devices
Supports single sided M. 2 SSD only

RAID
Supports RAID 0, and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5* for M. 2 NVMe storage devices
* RAID 5 configuration is only supported by Ryzen 9000 series processors.

USB ports
2x USB 40Gbps (2 Type-C)
1x USB 20Gbps (1 Type-C, via 5-in-1 Xpander Card)
6x USB 10Gbps (1 Type-C + 5 Type-A)
2x USB 5Gbps (2 Type-A, via 5-in-1 Xpander Card)
2x USB 2.0 Type-A

LAN
1x Realtek 8126 (5Gbps LAN)

Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost 5

PCB Info
Mini-ITX
170mmx170mm
