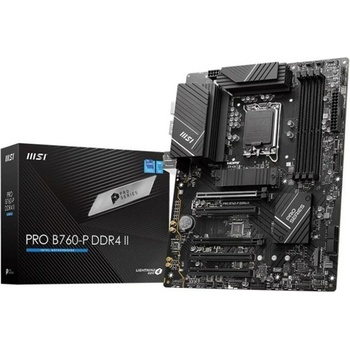

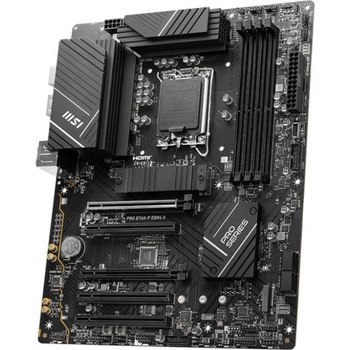

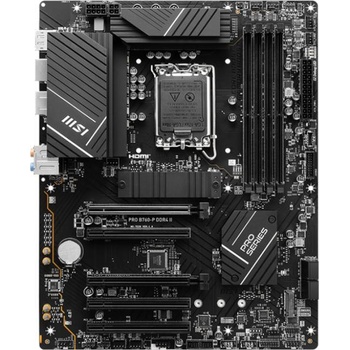

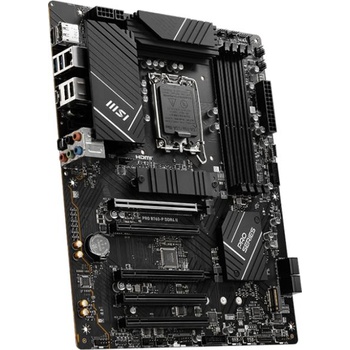

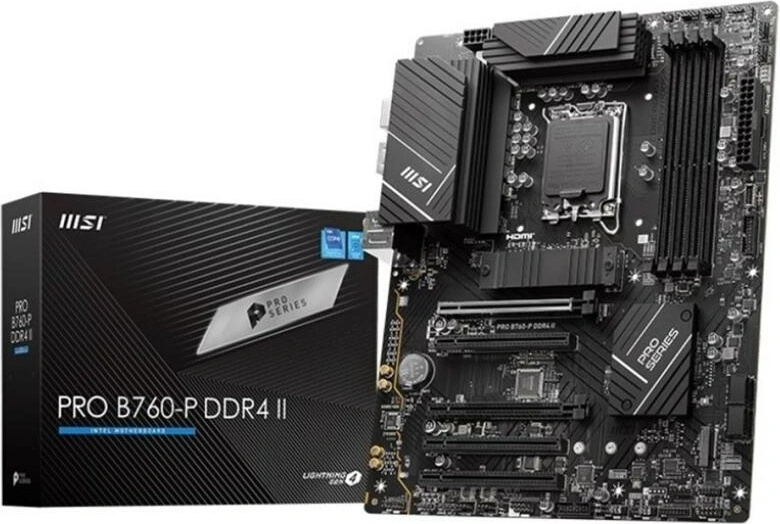

MSI PRO B760-P DDR4 II

MSI PRO B760-P DDR4 II DDR4 LGA1700 ATX MB 2xPCIe x16 HDMI DP 4xSATAMSI PRO B760-P DDR4 II DDR4 LGA1700 ATX MB 2xPCIe x16 HDMI DP 4xSATA:Manufacturer : MSIManufacturer Part No : PRO B760-P DDR4 IIMarketing DescriptionThe MSI PRO B760-P DDR4 II motherboard is engineered to cater to the demands of Intel Core processors, offering a solid foundation for your PC build. This motherboard is designed with performance and durability in mind, featuring a range of enhancements such as an Extended Heatsink Design, M. 2 Shield FROZR, and support for DDR4 memory speeds up to 5333 MHz (O. C. ).
With its robust audio features including the Realtek ALC897 codec and high definition audio support, users can enjoy a rich, detailed sound environment. The motherboard also boasts a comprehensive suite of connectivity options, including USB-C 3.2 Gen 2, USB 3.2 Gen 1, DisplayPort, and HDMI, ensuring that you can connect a wide array of peripherals with ease. Whether you're building a gaming rig or a high-performance workstation, the MSI PRO B760-P DDR4 II offers the reliability, performance, and features you need to get the most out of your system. Product Features

• Enhanced connectivity
  With a comprehensive array of ports including USB-C 3.2 Gen 2, USB 3.2 Gen 1, DisplayPort, and HDMI, the PRO B760-P DDR4 II ensures versatile connectivity options for a wide range of peripherals.
• Robust audio experience
  Equipped with Realtek ALC897 codec and supporting high definition audio (8-channel), this motherboard delivers a rich, detailed sound environment for an immersive audio experience.
• Optimized for performance
  Supporting a wide range of DDR4 memory speeds up to 5333 MHz (O. C. ), the motherboard is designed to maximize the performance of 12th/13th and 14th Generation Intel Core processors, ensuring smooth and efficient operation.
• Advanced cooling solutions
  Features like Extended Heatsink Design, M. 2 Shield FROZR, and Frozr AI Cooling work in harmony to keep your system cool under pressure, enhancing reliability and performance.
• Durable and reliable
  With 2oz Copper PCB, 6 Layer PCB, and additional durability features such as Double ESD Protection and MSI Steel Armor, the motherboard is built to withstand the rigors of daily use and intense gaming sessions.

GeneralProduct Type : Motherboard - ATXChipset Type : Intel B760Processor Socket : LGA1700 SocketMax Processors Qty : 1Compatible Processors : (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)Supported RAMMax Size : 128 GBTechnology : DDR4Bus Clock : 5333 MHz (O. C. ), 5200 MHz (O. C. ), 5066 MHz (O. C. ), 5000 MHz (O. C. ), 4800 MHz (O. C. ), 4600 MHz (O. C. ), 4400 MHz (O. C. ), 4266 MHz (O. C. ), 4200 MHz (O. C. ), 4000 MHz (O. C. ), 3800 MHz (O. C. ), 3733 MHz (O. C. ), 3600 MHz (O. C. ), 3466 MHz (O. C. ), 3400 MHz (O. C. ), 3333 MHz (O. C. ), 3200 MHz, 2933 MHz, 2666 MHz, 2400 MHz, 2133 MHzSupported RAM Integrity Check : Non-ECCRegistered or Buffered : UnbufferedFeatures : Intel Extreme Memory Profiles (XMP), dual channel memory architectureAudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Controller : Realtek RTL8125BGNetwork Interfaces : 2.5 Gigabit EthernetExpansion / ConnectivityExpansion Slots : 4 x SO-DIMM 260-pin
2 x M. 2 socket (2242/2260/2280 M. 2 Key M slot)
1 x PCIe 4.0 x16
3 x PCIe 3.0 x1

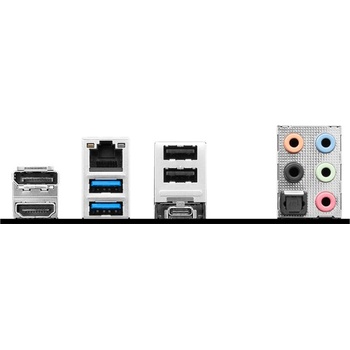

1 x PCIe 4.0 x4Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10Interfaces : 1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
2 x USB 2.0
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x HDMI
2 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 2
1 x SPDIF outInternal Interfaces : 1 x audio - header
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - headerPower Connectors : 8-pin ATX12V connector, 4-pin ATX12V connector, 24-pin main power connectorFeaturesBIOS Features : MSI ClickBIOS 5, M-FlashHardware Features : Debug LED, Windows 11 compatible, 6 Layer PCB, 2oz Copper PCB, Digital PWM, MSI Steel Armor, MSI Memory Boost, Extended Heatsink Design, M. 2 Shield FROZR, Frozr AI Cooling, DigitALL Power, MSI Core Boost, Double ESD Protection, DIY Friendly Design, NVIDIA Resizable BAR Support, MSI Mystic Light, lightning gen4 solutionMiscellaneousIncluded Accessories : I/O back plate, EZ M. 2 clip, m. 2 screw / standoff setsCables Included : 1 x Serial ATA cableWidth : 30.48 cmDepth : 24.384 cmTechnical data provided by third party. We assume no liability for errors within these data.
