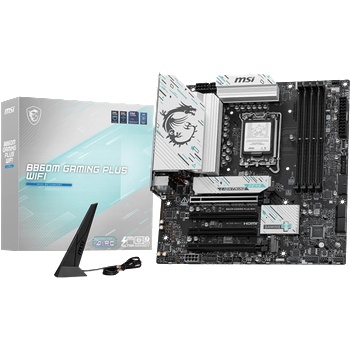

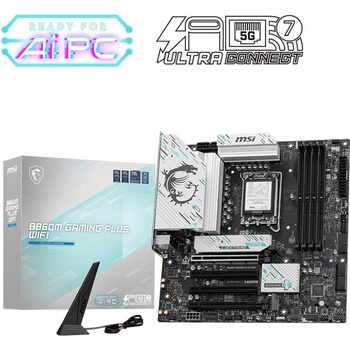

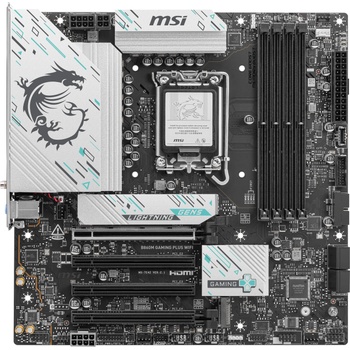

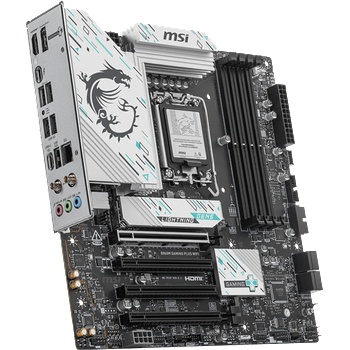

MSI PRO B860M GAMING PLUS WIFI

MSI B860 GAMING PLUS WIFIMSI B860 GAMING PLUS WIFI:Manufacturer : MSIManufacturer Part No : B860 GAMING PLUS WIFIMarketing DescriptionThe MSI B860 GAMING PLUS WIFI motherboard is designed for gamers and PC enthusiasts who seek high performance and exceptional stability. Built on the Intel B860 chipset, it supports Intel Core Ultra processors and features advanced memory capabilities with support for DDR5 SDRAM at speeds of up to 4400 MHz through overclocking. The motherboard boasts a robust 12+1+1 phase power design along with MSI's Core Boost and Audio Boost technologies, ensuring reliable power delivery and stellar audio quality for an immersive gaming experience.
With multiple expansion slots, including PCIe 5.0 and M. 2 sockets, users can easily customize their builds for maximum performance. The built-in high definition audio capabilities provide an 8-channel surround sound experience. Networking options are extensive, featuring 5 Gigabit Ethernet and Wi-Fi 7 support, enabling seamless online gameplay. The B860 GAMING PLUS WIFI also incorporates practical features like a pre-mounted I/O shield and MSI's innovative EZ Debug LED for troubleshooting, making it a compelling choice for any serious gamer. Product Features

• Reliable power delivery
  The 12+1+1 phase power design ensures efficient power distribution to your components, optimizing performance and stability during intensive tasks.
• Advanced memory support
  Featuring support for DDR5 SDRAM at various overclocking speeds, the motherboard enhances memory performance to handle demanding applications and gaming scenarios.
• Extensive connectivity options
  Equipped with multiple USB ports including USB 3.2 Gen 2 and USB-C 3.2 Gen 2, the motherboard enables high-speed data transfers and extensive peripheral connectivity.
• Integrated audio features
  MSI Audio Boost technology provides high definition 8-channel audio, elevating the overall sound experience for games, movies, and music.
• Robust network capabilities
  This motherboard supports 5 Gigabit Ethernet and Wi-Fi 7, ensuring fast, stable connections for seamless online gaming and streaming.

GeneralProduct Type : Motherboard - ATXChipset Type : Intel B860Processor Socket : LGA1851 SocketMax Processors Qty : 1Compatible Processors : (supports Intel Core Ultra processors (Series 2))Supported RAMMax Size : 256 GBTechnology : DDR5Bus Clock : 4400 MHz (O. C. ), 3600 MHz (O. C. ), 3200 MHz (O. C. ), 2400 MHzSupported RAM Integrity Check : Non-ECC, on-die ECCRegistered or Buffered : UnbufferedFeatures : Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architectureAudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Interfaces : 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)Expansion / ConnectivityExpansion Slots : 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (x1 mode)
1 x PCIe 4.0 x16 (x4 mode)
2 x M. 2 socket (2260/2280 M. 2 Key M slot)
1 x M. 2 socket (2242/2260/2280 M. 2 Key M slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1 / RAID 10 / RAID 5Interfaces : 1 x HDMI
1 x DisplayPort
1 x Thunderbolt 4/DisplayPort/USB4
4 x USB 2.0
2 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
2 x aerial
1 x LAN (5Gigabit Ethernet)
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jackInternal Interfaces : 1 x USB-C 3.2 Gen 2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x serial - header
1 x Thunderbolt 5 - header
1 x SPI - headerPower Connectors : 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector, 8-pin PCI Express power connectorFeaturesBIOS Type : AMIBIOS Features : MSI ClickBIOSHardware Features : EZ Conn-Design, Clear CMOS Button, 12+1+1 Phase Power Design, EZ PCie Clip II, pre-mounted I/O shield, MSI Audio Boost, EZ Debug LED, MSI Steel Armor, EZ M. 2 Sheild FROZR II, 6 Layer PCB, MSI Core Boost, Enlarged Chipset Heatsink, Extended Heatsink DesignMiscellaneousIncluded Accessories : EZ Wi-Fi antenna, EZ M. 2 clip II, EZ M. 2 clip II remover, 1 to 2 EZ Conn-CableCables Included : 1 x Serial ATA cableWidth : 30.48 cmDepth : 24.384 cmPackage Details : BoxTechnical data provided by third party. We assume no liability for errors within these data.
