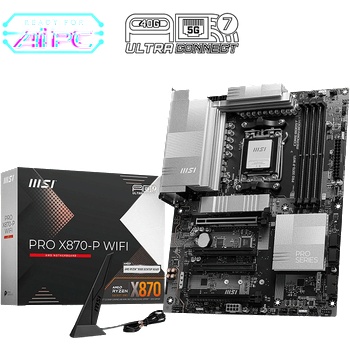

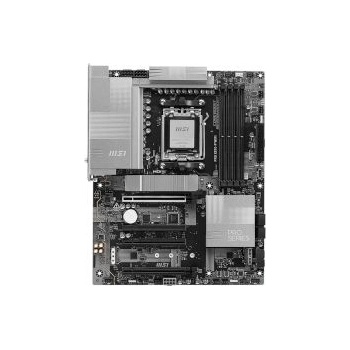

MSI PRO X870-P WIFI AM5 MB 4xDDR5 4xSATA 3xM. 2MSI PRO X870-P WIFI AM5 MB 4xDDR5 4xSATA 3xM. 2:Manufacturer : MSIManufacturer Part No : PRO X870-P WIFIMarketing DescriptionThe MSI PRO X870-P WIFI motherboard is a sturdy and efficient choice for building a PC. Designed with an AMD X870 chipset, it supports the Ryzen 7000, 8000, and 9000 Series processors, providing significant processing power and speed. This motherboard features four DIMM slots for DDR5 SDRAM, offering support for memory speeds up to 4000 MHz with overclocking capabilities, ensuring smooth multitasking and responsiveness for demanding applications and gaming experiences.
Connectivity is a highlight of the PRO X870-P WIFI, featuring a variety of ports including USB 4.0, USB-C 3.2 Gen 2, USB 3.2 Gen 1, and numerous HDMI and audio connections. The integrated Wi-Fi 7 support enhances wireless networking, complemented by 5 Gigabit Ethernet capabilities for a reliable and speedy connection. The motherboard is equipped with MSI's Audio Boost for sound output and utilizes a robust power design with a total of 14+2+1 phase power setup which maximizes stability and performance under heavy loads. Product Features

• Robust power design
  The 14+2+1 phase power design ensures efficient power delivery and stability, crucial for high-performance computing tasks and gaming.
• Extensive connectivity options
  Featuring a wide array of ports, including USB 4.0, USB-C, and multiple USB 3.2 options, connectivity needs are comprehensively addressed.
• Advanced memory support
  With support for DDR5 SDRAM and speeds up to 4000 MHz, this motherboard enhances the efficiency and responsiveness of system operations.
• Superior audio performance
  Equipped with MSI Audio Boost technology, this motherboard delivers high definition audio for immersive gaming and media experiences.
• Integrated high-speed networking
  The motherboard supports Wi-Fi 7 and includes 5 Gigabit Ethernet capabilities, ensuring reliable and rapid Internet connectivity.

GeneralProduct Type : Motherboard - ATXChipset Type : AMD X870Processor Socket : Socket AM5Max Processors Qty : 1Compatible Processors : (supports Ryzen 7000/8000/9000 Series)Supported RAMMax Size : 256 GBTechnology : DDR5Bus Clock : 4100 Mhz (O. C), 4000 MHz (O. C. ), 3900 MHz (O. C. ), 3800 MHz (O. C. ), 3700 MHz (O. C. ), 3600 MHz (O. C. ), 3500 MHz (O. C. ), 3400 MHz (O. C. ), 3300 MHz (O. C. ), 3200 MHz (O. C. ), 3100 MHz (O. C. ), 3000 MHz (O. C. ), 2900 MHz (O. C. ), 2800 MHz, 2700 MHz, 2600 MHz, 2500 MHz, 2400 MHzSupported RAM Integrity Check : Non-ECCRegistered or Buffered : UnbufferedFeatures : Dual channel memory architecture, AMD EXPO technologyAudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Controller : Realtek RTL8126Network Interfaces : 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4Expansion / ConnectivityExpansion Slots : 1 x CPU
4 x DIMM 288-pin
4 x PCIe x16
1 x PCIe
2 x M. 2 socket (2260/2280)
1 x M. 2 socket (2280/22110)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1
PCIe 5.0 -connectors: 1 x M. 2
PCIe 4.0 -connectors: 2 x M. 2Interfaces : 1 x HDMI
2 x aerial
1 x USB4
1 x USB-C 3.2 Gen 2
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x LAN (5Gigabit Ethernet)Internal Interfaces : 1 x audio - header
1 x SPI - header
1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - headerPower Connectors : 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connectorFeaturesBIOS Type : AMIBIOS Features : UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 supportHardware Features : 14+2+1 Phase Power Design, Frozr AI Cooling, MSI LAN Manager, MSI AI Engine, MSI Mystic Light, Cooling Wizard, MSI Companion, MSI Core Boost, lightning gen5 solution, MSI Steel Armor, 2oz Copper PCB, MSI Audio Boost, Extended Heatsink Design, VRM heatsink design, Enlarged Chipset Heatsink, DIY Friendly DesignMiscellaneousIncluded Accessories : Wi-Fi aerial, 3 x EZ M. 2 clip 2, EZ M. 2 clip 2 removerCables Included : 2 x Serial ATA cable
1 x 1 to 2 EZ Conn (V1) cableSoftware Included : MSI Center, Adobe Acrobat Reader, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, Norton 360Width : 30.5 cmDepth : 24.4 cmTechnical data provided by third party. We assume no liability for errors within these data.
MSI .
