MSI PRO X870E-P WIFI (7E70-003R)

Доставка на този тип поръчки:
Продукта се поръчва специално за клиента, от външен склад.
В зависимост от типа и теглото на продукта, е възможно да бъде изискано предварителното му заплащане по банка, с карта или в брой в магазина.
Срока за доставка е 2-5 дни след получено потвърждение на поръчката.


MSI MPG X870E P Pro WIFI (AM5)

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3

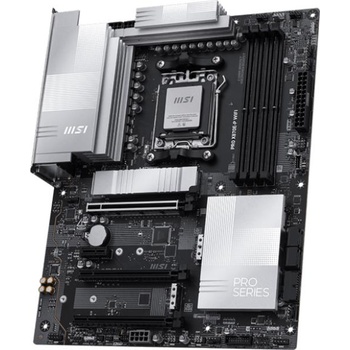

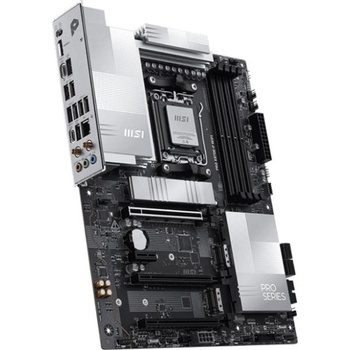

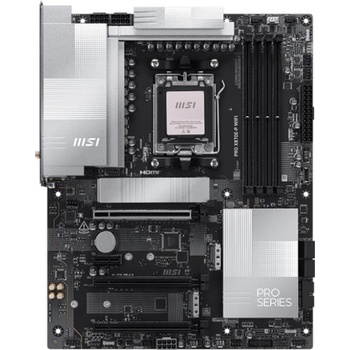

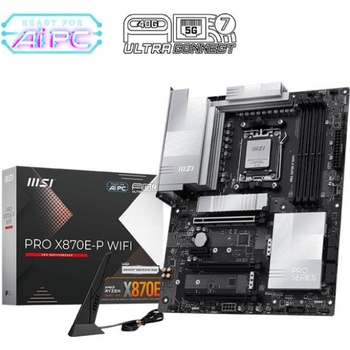

MSI PRO X870E-P WIFI

USB: 4x USB 2.0 (Rear);6x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);4x USB 5Gbps Type A (Front);2x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Rear);1x USB 40Gbps Type C (Rear)
Manufacturer: MSI
Wireless: Wi-Fi 7;The Wireless module is pre-installed in the M. 2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;Supports Bluetooth® 5.4, MLO, 4KQAM
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only
Features: 4x EZ Debug LED;1x EZ Memory Detection LED
CPU's supported: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors;Socket AM5
Chipset: AMD X870E
Bluetooth: 5.4
Graphics: 1x HDMI;Support HDMITM 2.1, maximum resolution of 4K 60Hz;1x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Expansion Slots: 3x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E1 slot; Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
Storage: 3x M. 2;M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices;4x SATA 6G;M2_1 slot; Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors);Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices;Supports RAID 0, RAID 1 and RAID 5 for M. 2 NVMe storage devices

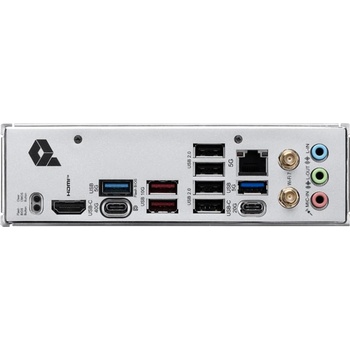

I/O: Clear CMOS Button;USB 5Gbps Type-A;USB 2.0;5G LAN;Wi-Fi / Bluetooth;Audio connectors;Flash BIOS Button;HDMI;USB 40Gbps Type-C;USB 10Gbps Type-A;USB 20Gbps Type-C;USB 5Gbps Type-A
Connectors: 1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Tuning Controller connector(JDASH);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);6x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports
Audio: Realtek® ALC897;7.1-Channel High Definition Audio
LAN: Realtek® 8126VB 5G LAN
Form Factor: ATX 243.84mmx304.8mm
OS: Support for Windows® 11 64-bit



.
