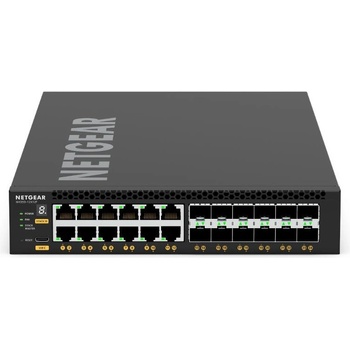

NETGEAR XSM4324-100NES

12x10G/Multi-Gig and 12xSFP+ (XSM4324) Managed Switch

• 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports
• 240W internal power supply
• Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations





FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.





CategoryFeature SpecificationMa nagement Features Switch type Managed  Switch layer L3  QoS support Yes  Web-based management Yes  ARP inspection YesPorts & Interfaces RJ-45 ports quantity 12  RJ-45 port type 10G Ethernet (100/1000/10000)  10G Ethernet (copper) ports 12  SFP+ module slots 12  Power connector AC-in jackNetwork Networking standards IEEE 802.1D/Q/Qav/s/w/x, 802.3/ab/ad/ak/bz/u  10G support Yes  Policy-based routing Yes  Full duplex Yes  6to4 tunnel Yes  IPv4 routes 512  IPv6 routes 256  Spanning tree protocol Yes  Rate limiting Yes  Broadcast storm control Yes  Flow control support Yes  Link aggregation Yes  VLAN support Yes  Virtual LAN features MAC-based, Private VLAN, Voice VLAN  Number of VLANs 4093Data Transmission Switching capacity 480 Gbit/s  Throughput 357.12 Mpps  MAC address table 16000 entries  Store-and-forward Yes  Latency (1 Gbps) 2.14 s  Latency (10 Gbps) 2.29 s  Jumbo frames support Yes  Jumbo frames size 12000  Packet buffer memory 32 MBSecurity DHCP features Option 150/66/67, relay, server, snooping  Access Control List (ACL) Yes  ACL egress 1023  ACL ingress 511  IGMP proxy Yes  IGMP snooping Yes  Password protection Yes  DoS attack prevention Yes  Authentication type RADIUS, TACACS+  Root protection Yes  Queue scheduling algorithms SPQ, WRED  Static port security Yes  MAC address filtering Yes  Loop protection Yes  BPDU filtering/protection Yes  Authentication Guest VLAN, MAC-based authenticationMulticast Features Multicast support Yes  MLD snooping YesProtocols Management protocols SNMP v1/v2/v3  Routing protocols OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2  GVRP YesDesign Rack mounting Yes  Stackable Yes  Form factor 1U  Product colour Black  LED indicators Yes  Airflow direction Front-to-backPerformance Built-in processor Yes  Processor model ARM Cortex-A57  Processor frequency 1800 MHz  Memory type DDR4-SDRAM  Internal memory 2048 MB  Flash memory 512 MB  sFlow YesPower Power source AC  Power supply included Yes  Power consumption (typical) 95.8 WPoE Power over Ethernet (PoE) NoOther Features Power supply 240 WOperational Conditions Operating temperature (T-T) 0 - 50 °C  Storage temperature (T-T) -20 - 70 °C  Operating relative humidity (H-H) 0 - 90%  Storage relative humidity (H-H) 0 - 95%  Operating altitude 0 - 3000 m  Non-operating altitude 0 - 3000 mDimensions Width 220 mm  Depth 400 mm  Height 43.2 mm  Weight 4.3 kg
