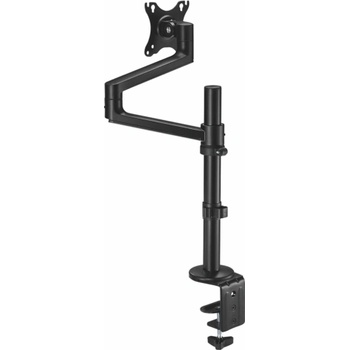

NewStar DS60-425BL1

The Neomounts DS60-425BL1 NEXT Lite is a full motion desk mount for screens up to 27" with a maximum weight capacity of 8 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screen. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

Specifications
General
Min. screen size*
17 inch

Max. screen size*
27 inch

Max. weight
8 kg

Screens
1

VESA pattern
75x75, 100x100 mm

VESA minimum
75x75 mm

VESA maximum
100x100 mm

Desk mount
Grommet, Clamp

Distance to wall
12,8-45,9 cm

Functionality
Height adjustment
27,5-55,5 cm

Width adjustment
33,2 cm

Depth adjustment
6,6-39,8 cm

Lockable
Not lockable

Tilt (degrees)
+90°, -30°

Swivel (degrees)
+90°, -90°

Rotate (degrees)
360°

Height
61,1 cm

Width
45,3 cm

Depth
45,9 cm

Adjustment type
Manual
