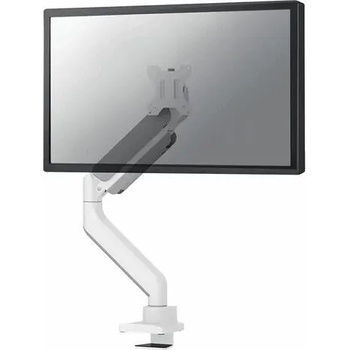

NewStar DS70-450WH1/BL1

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

Specifications

General

Min. screen size*

17 inch

Max. screen size*

42 inch

Min. weight

1 kg

Max. weight

15 kg

Max. weight curved/ultra-wide

11 kg

Screens

1

VESA pattern

75x75, 100x100 mm

VESA minimum

75x75 mm

VESA maximum

100x100 mm

Desk mount

Grommet, Clamp

Distance to wall

10,8-56,8 cm

Functionality< /strong>

Type

Full motion

Height adjustment

26,1-55,5 cm

Width adjustment

92 cm

Depth adjustment

5,4-51,1 cm

Tilt (degrees)

+45°, -45°

Swivel (degrees)

+90°, -90°

Rotate (degrees)

+180°, -180°

Height

65,3 cm

Width

12 cm

Depth

56,8 cm

Adjustment type

Gas spring
