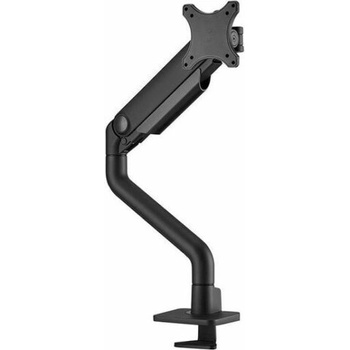

NewStar Neomounts DS70S-950BL1

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

Specifications
General
Min. screen size*
17 inch

Max. screen size*
49 inch

Min. weight
1 kg

Max. weight
18 kg

Max. weight curved/ultra-wide
15 kg

Screens
1

VESA pattern
75x75, 100x100 mm

VESA minimum
75x75 mm

VESA maximum
100x100 mm

Desk mount
Grommet, Clamp

Distance to wall
11,9-65,6 cm

Functionality
Type
Full motion

Height adjustment
20-52 cm

Width adjustment
107,4 cm

Depth adjustment
8,8-62,5 cm

Tilt (degrees)
+90°, -90°

Swivel (degrees)
+90°, -90°

Rotate (degrees)
+90°, -90°

Height
57,9 cm

Width
13,5 cm

Depth
65,6 cm

Adjustment type
Gas spring
