NewStar WL40S-850BL18

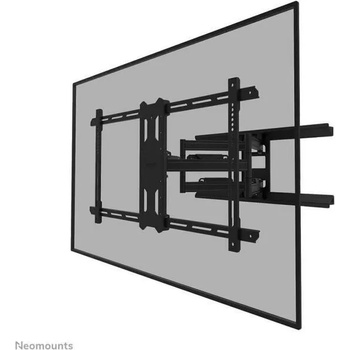

The Neomounts WL40S-850BL18 LEVEL is a full motion wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. The versatile tilt (18°) and swivel (35°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The LEVEL-850 wall mount has a depth of 5-61 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400mm.

The WL40S-850BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.

Specifications

General:
Min. screen size*:
43 inch
Max. screen size*:
86 inch
Max. weight:
60 kg
Screens:
1
VESA pattern:
200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 800x400 mm
Distance to wall:
5-61 cm

Functionality:
Type:
Full motion, Tilt, Swivel
Lockable:
Not lockable
Tilt (degrees):
+15°, -3°
Swivel (degrees):
35°
Rotate (degrees):
+3°, -3°
Height:
43,6 cm
Width:
85 cm
Depth:
5 cm
