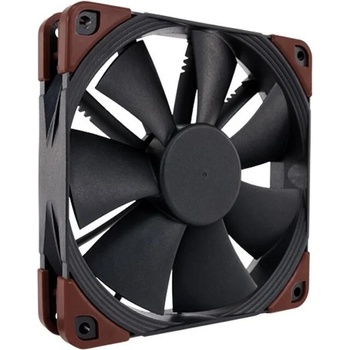

Noctua NF-F12-24V-IP67-iPPC-3000-PWM

Conceived for industrial heavy-duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. The 24V SP variant uses Noctua’s new NE-FD5 high-efficiency single-phase motor driver IC in order to support 24V-based industrial and automotive applications. Its sophisticated inrush current suppression and extreme electrical robustness with extended burst and surge immunity allow it to operate safely in sensitive or hostile electronic environments. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the high-performance single-phase motor, the industrialPPC SP version provides superior airflow and pressure capacity while keeping noise and power consumption at a moderate level as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging surroundings, the renowned SSO2 bearing technology guarantees an MTTF of over 150,000hrs. Topped off with Noctua’s trusted reliability and 6-year manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.



Specifications:

FAN Specification

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO2

Blade geometry

Heptaperf

Frame technology

FocusedFlow

Material

Fibre-glass reinforced polyamide

Ingress protection

IP67

Motor type

Single-phase

Rotational speed (+/- 10%)

2000 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Rotational speed @ 12V (+/- 10%)

1050 RPM

Airflow

121,8 m³/h

Acoustical noise

29,7 dB(A)

Static pressure

3,94 mm H₂O

Input power (typical)

1,32 W

Input power (max. )

1,68 W

Input current (typical)

0,055 A

Input current (max. )

0,07 A

Operating voltage

24 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

Scope of delivery

• Fan


• 4 Fan Screws
