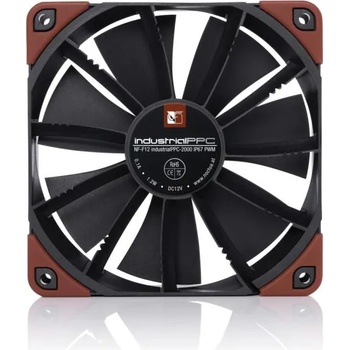

Noctua NF-F12 industrialPPC-2000 IP67 PWM (PPC-2000IP67PWM)

Noctua NF-F12 iPPC-2000

Conceived for industrial heavy duty applications that require enhanced
cooling performance and advanced ingress protection, the NF-F12 industrialPPC
(Protected Performance Cooling) is a ruggedised high-speed version of
the award-winning retail model. Thanks to the outstanding aerodynamic
efficiency of the NF-F12 design and the use of a novel three-phase motor,
the industrialPPC version provides superior airflow and pressure
capacity while keeping noise levels and power consumption moderate as
against comparable high-speed fans. While its fibre-glass reinforced
polyamide construction and certified water and dust protection make the
NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2
bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Specifications:

Size
120x120x25 mm

Connector
4-pin PWM

Bearing
SSO2

Blade Geometry
Heptaperf

Frame Technology
FocusedFlow

Rotational Speed (+/- 10%)
2000 RPM

Min. Rotational Speed (PWM, +/-20%)
450 RPM

Airflow
121,8 m³/h

Acoustical Noise
29,7 dB(A)

Static Pressure
3,94 mm H2O

Max. Input Power
1,2 W

Max. Input Current
0,1 A

Voltage
12 V

MTBF
150.000 h

Scope of Delivery:

Fan
4 Fan Screws

Ingress Protection
IP52

Material
Fibre-glass reinforced polyamide

Motor type
Three-phase
