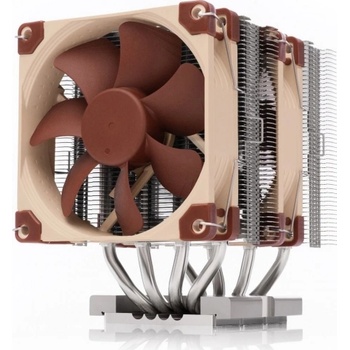

Noctua NH-D9 DX-4677 4U
DX series for Intel Xeon
First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e. g. audio/video production, content creation, engineering, etc. ).
Customised for LGA4677
The new DX-4677 line coolers are dedicated, customised solutions for Intel’s professional LGA4677 platform, which makes them an ideal fit for both 4th generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and w9, w7, w5 or w3 series Xeon processors for workstations.
Enlarged contact surface
At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4677-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
Compatible with E1A, E1B and E1C carrier frames
LGA4677 processors require plastic CPU carrier frames for installation, which are included with retail boxed CPUs and available separately via Intel sales partners for tray CPUs. The SecuFirm2 mounting for LGA4677 is compatible with all types of carriers (E1A, E1B, E1C).
Compact 92mm size for best compatibility
Thanks to its compact footprint (95x95mm with center fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 DX-4677 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.
Airflow parallel to long axis of the socket
The NH-D9’s direction of airflow is parallel to the long axis of the LGA4677 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go perpendicular to the long axis of the socket, please choose the NH-U9 DX-4677 4U.
Dual NF-A9 HS-PWM fans
The NH-D9 DX-4677 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4677.
PWM support and y-cable
The NF-A9 premium fans supplied with the NH-D9 DX-4677 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.
Specifications
Cooler Specification
Socket compatibility
Intel Xeon LGA4677
Height (without fan)
134 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Weight (without fan)
584 g
Height (with fan)
134 mm
Width (with fan)
95 mm
Depth (with fan)
120 mm
Weight (with fan)
769 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
134
Fan compatibility
2x 92x92x25mm
Scope of delivery
2x NF-A9 HS-PWM premium fan
NA-YC1 4-pin PWM y-cable
NT-H1 high-grade thermal compound (pre-applied)
SecuFirm2 mounting kit for LGA4677
NM-SMT5 Torx T30 mounting tool
FAN Specification
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
Max. airflow
96,3 m³/h
Max. acoustical noise
30,6 dB(A)
Input power (max. )
1,68 W
Voltage range
12 V
MTTF
> 150.000 h
