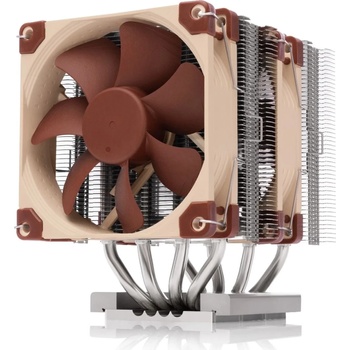

Noctua NH-D9 TR5-SP6 4U
Compact 92mm size for best compatibility
Thanks to its compact footprint (95x95mm with centre fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 TR5-SP6 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.
Airflow parallel to long axis of the socket
The NH-D9’s direction of airflow is parallel to the long axis of the sTR5/SP6 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go perpendicular to the long axis of the socket, please choose the NH-U14S TR5-SP6 or adapt NH-U12S DX-4677 and NH-U9 DX-4677 coolers using the NM-TR5-SP6 kit.
Dual NF-A9 HS-PWM fans
The NH-D9 TR5-SP6 4U is equipped with two of Noctua’s award-winning NF-A9 PWM 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler.
PWM support and splitter cable
The NF-A9 premium fans supplied with the NH-D9 TR5-SP6 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied splitter cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.
Specification
Cooler Specification
Socket compatibility
AMD sTR5, SP6
Height (without fan)
134 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Weight (without fan)
584 g
Height (with fan)
134 mm
Width (with fan)
95 mm
Depth (with fan)
120 mm
Weight (with fan)
769 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
134
Fan compatibility
92x92x25mm
< /p>
Scope of delivery
- 2x NF-A9 HS-PWM premium fan
- NA-YC1 4-pin PWM splitter cable
- NT-H2 high-grade thermal compound (pre-applied)
- SecuFirm2 mounting kit for sTR5/SP6
- NM-SMT3 mounting tool for mounting bracket installation
FAN Specification
Model
2x Noctua NF-A9 HS-PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
Max. airflow
96,3 m³/h
Max. acoustical noise
30,6 dB(A)
Input power (max. )
1,68 W
Voltage range
12 V
MTTF
> 150.000 h
