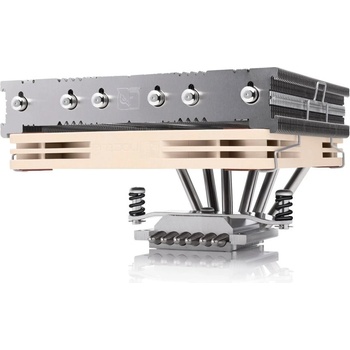

Noctua Охлаждане за процесор Noctua NH-L12Sx77, съвместимост със сокети Intel LGA 1851/1700/1200/115x & AMD AM5/AM4 (NH-L12Sx77)

Noctua NH-L12Sx77

Performance-enhanced low-profile cooling

With 6 instead of 4 heatpipes, the NH-L12Sx77 offers significantly more headroom for higher heat-loads compared to the original NH-L12S . As such, it is ideal for getting the most out of today’s high-end CPUs in compact cases where their aggressive turbo boost modes are especially challenging to handle.

Better performance, better compatibility

The NH-L12Sx77 not only improves performance but also motherboard and RAM compatibility versus the original NH-L12S: Due to the x77 version’s taller construction, clearance for RAM modules as well as motherboard heatsinks and shrouds could be increased significantly, which makes the cooler an easy fit in most configurations.

44mm RAM clearance

In its standard orientation with the bends of the heatpipes facing the I/O panel of the motherboard, the NH-L12Sx77 supports RAM modules of 44mm height, making it fully compatible with a wide range of high-end modules (see the Noctua Compatibility Centre).

Exhaust airflow direction

The NH-L12Sx77 has its fan pre-installed underneath the fin stack blowing upwards, which is ideal in compact cases that typically have a perforated panel right above the cooler as hot air can be exhausted directly instead of accumulating inside the case. At the same time, this setup avoids noises from influx turbulences that occur when fans are drawing in air through perforated panels.

NF-A12x15 slim 120mm premium fan

Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A12x15 is a premium-grade slim 120mm fan. Its outstanding efficiency enables the NH-L12Sx77 to combine excellent cooling performance with superb quietness of operation.

PWM support and Low-Noise Adaptor

The NF-A12x15 120mm fan supplied with the NH-L12Sx77 supports PWM for convenient automatic speed control through the motherboard: full performance under load, virtually silent at idle. In addition, the maximum fan speed can be reduced from 1850 to 1400rpm using the supplied Low-Noise Adaptor for even quieter operation.

Specification

Cooler Specification

Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 socket_compatibility

Heig ht (without fan)

77 height_without_fan

Width (without fan)

128 width_without_fan

Depth (without fan)

131 depth_without_fan

Weight (without fan)

410 weight_without_fan

Height (with fan)

77 height_with_fan

Width (with fan)

128 width_with_fan

Depth (with fan)

131 depth_with_fan

Weight (with fan)

520 weight_with_fan

Material< /p>

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating material

NSPR

100 nspr

Fan compatibility

120x120x15 & 120x120x25 fan_compatibility

FAN Specification

Bearing

SSO2 bearing

Max. rotational speed (+/- 10%)

1850 max_rotational_speed

Max. rotational speed with L. N. A. (+/- 10%)

1400 max_rotational_speed_wit

Min. rotational speed @ 20% PWM (+/-20%)

450 min_rotational_speed_pw

M ax. airflow

94,2 max_airflow

Max. airflow with L. N. A.

70,8 max_airflow_with_lna

Max. acoustical noise

23,9 max_acoustical_noise

Max. acoustical noise with L. N. A.

16,8 max_acoustical_noise_wit_lna

Input power (max. )

1,56 input_power

Voltage range

12 voltage_range

MTTF

> 150.000 mtbf
