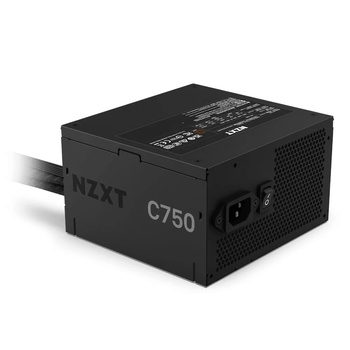

NZXT C750 750W 80 PLUS Bronze (PA-7B2BB-EU)

The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.

• Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
• A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
• DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
• Tested for safety at up to 40°C, and features over-temperature and over-current protections.
• Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.

Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.

Tested for safety at up to 40°C, and features over-temperature and over-current protections.

Output Connector(s)

• 24-pin ATX Power:1
• 4+4-pin CPU power:2
• 6+2-pin PCIe power:2
• SATA Power:4
• Peripherals:4

• 24-pin ATX power:600mm, Nylon sleeving
• 4+4-pin CPU power:700mm, Nylon sleeving
• 6+2-pin PCIe power:650 + 150mm, Nylon sleeving
• SATA power:500 + 150 mm
• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 - 240Vac:10A-5A 50Hz-60Hz

DC Output Rating

• +3.3V:20A (120W)
• +5V:20A (120W)
• +12V:62.5A (750W)
• -12V:0.3A (3.6W)
• 5Vsb:2.5A (12.5W)
• Total:750W

O peration

• PF Correction:[email protected]
• MTBF:100, 000 hours
• Operation Temperature:0 to 40°C

ENERGY EFFICIENCY

• Rating:80 Plus Bronze
• 10% loading:86.2% @115Vac
• 20% loading:88.97% @115Vac
• 50% loading:88.7% @115Vac
• 100% loading:83.2% @115Vac

Fan Specs

• Dimensions:120 x 120 x 25 (mm)
• Speed:2400 ±10% RPM
• Airflow:64.4 CFM (Tpy. )
• Noise:39.92 dBA max
• Bearing:FDB (Fluid Dynamic Bearing)

General

• Dimensions (W x L x H):150 x 140 x 86mm
• Material(s):Steel, PCB and Plastic
• Compliance Standard:ATX12V v2.53 / EPS12V v2.92
• Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM
• Hazardous Materials:Taiwan and China RoHS Table, CP65, EU REACH
• Protections:OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection)
