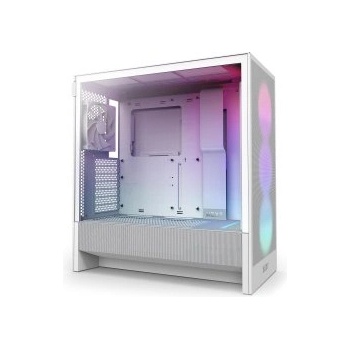

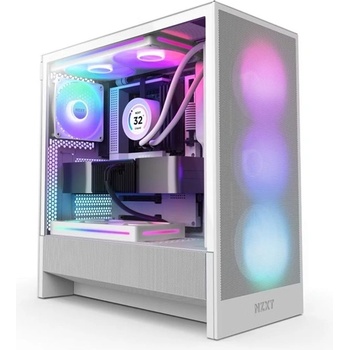

NZXT H5 Flow RGB 2024 White (CC-H52FW-R1)

H5 Flow RGB

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Tool-less Access

Easily open up the front, side, and top panels without any tools.

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

Tech Specs

Key Specs

• Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
• Enclosure Type:Mid-Tower
• Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions< /p>

• Height (with feet):465 mm / 18.31 in
• Width:225 mm / 8.86 in
• Depth:430 mm / 16.93 in
• Weight:7.63 kg / 16.82 lb

Compatibility & Clearance

• CPU Cooler Height:Up to 170 mm
• GPU Length:Up to 410 mm
• PSU Length:Up to 200 mm
• Cable Management:Up to 28.7 mm
• Top Radiator:Up to 240 mm (280 mm with low-profile memory)
• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm

Front Ports

• USB 3.2 Type-A:1
• USB 3.2 Gen 2x2 Type-C (20 Gbps):1
• Headset Audio Jack:1

Expansion Slots

• Standard:7
• Vert ical:0

Drive Bays

• 2.5":2
• 3.5":1

Fan Support

• Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
• Top:2 x 120 mm / 2 x 140 mm
• Bottom:2 x 120 mm
• Rear:1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

• Front:Up to 360 mm
• Top:Up to 240 mm (280mm with low-profile memory only)

Fan Specs

• Model:F360 RGB Core (Case Version)
• Speed:1,700 ± 200 RPM
• Airflow:50.1 CFM
• Static:1.27 mm-H₂O
• Noise:23.3 dBA
• Fan Connector:3-pin

Fan Specs

• Model:F120Q (Case Version)
• Speed:1,350 ± 150 RPM
• Airflow:60.2 CFM
• Static:1.05 mm-H₂O
• Noise:24.1 dBA
• Fan Connector:3-pin
