NZXT H7 Flow RGB 2024 (CM-H72FB-R1)
Описание на продукта
Параметри на продукта
Параметри на продукта
Описание на продукта

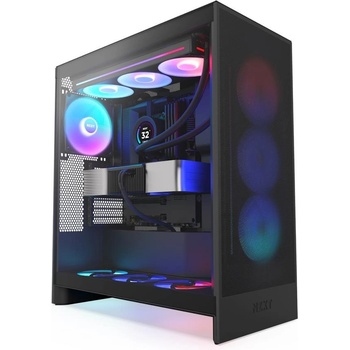

NZXT H7 Flow RGB 2024 Edition
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Large Radiator Support
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Tech Specs
Key Specs
Motherboard Support
E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type
Mid-Tower
Case Material
Dark Tinted Tempered Glass (Black)
Dimension s
Height (With Feet)
544 mm
Width
244 mm
Depth
468 mm
Weight
11.13 kg
Compatibility & Clearance
CPU Cooler Height
Up to 185mm
GPU Length
Up to 410 mm
PSU Length
Up to 200 mm
Cable Management
Up to 34.5 mm
Top Mounted Radiator & Fan Combined Thickness
Up to 57 mm (140mm / 280mm)
Front I/O Ports
USB 3.2 Gen 1 Type-A
2
USB 3.2 Gen 2x2 Type-C (20 Gbps)
1
Headset Audio Jack
1
Expa nsion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
2+2
3.5"
2
Fan Support
Front
3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top
3 x 120 mm / 2 x 140 mm
Bottom
3 x 120 mm
Rear
1 x 120 mm / 1 x 140 mm
Filters
High-Performance Mesh
Radiator Support
Front
Up to 420 mm
Top
Up to 360mm
Rear
Up to 140mm
Fan Specs
Model
F360 RGB Core Fan (Case Version)
Speed
1,700 ± 200 RPM
Airflow
50.1 CFM
Static
1.27 mm-H₂O
Noise
23.3 dBA
Fan Connector
3-pin DC
