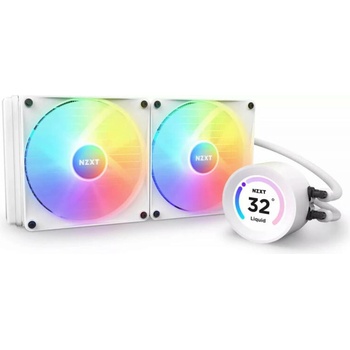

NZXT Kraken Elite 280 RGB White (RL-KR28E-W1)

Cap

Material

Aluminum, Plastic



Display Orientation

Software adjustable Default, +90, +180, and -90 Degrees



Display Panel Active Area

2.36 (60mm) diameter



Display Color

24-bit true color LCD



Display Resolution

640 x 640 px



Display Brightness

690 cd/m2



Display Panel Type

TFT-LCD (Wide Viewing Angle)



Water Block

Dimensions

Diameter: 81.9mm H: 59.5mm



Material (Block)

Copper



Material (Housing)

Plastic



Pump

Motor Speed

800 - 2,800 ± 300 RPM



Power

12V DC, 0.3A



Radiator

Dimensions

143 x 315 x 30mm



Material

Aluminum



Tube

Length

400mm



Material

Ultra-low Evaporation Rubber with Nylon Braided Sleeve



Fan Specs

Model

F140 RGB Core Fans



Quantity

2



Dimension

140 x 140 x 26mm



Speed

500-1,500 ± 150 RPM



Airflow

90.79 CFM



Air Pressure

3.22 mm H2O



Noise

34.48 dBA



Bearing

Fluid Dynamic Bearing



Power Consumption

12 V DC, 0.24 A, 2.88 W



Fan Connector

4-pin PWM



Life

60,000 hours



RGB Controller

Dimensions

63.2 x 53.2 x 12.8mm



Weight

52.8g



Mounting

Magnet and 3M Dual Lock



Connection Cables

1x USB 2.0 internal connector

1x SATA power cable



Input Connector

12V DC / 2.6A



RGB Lighting Channels

3



Output Channel Voltage

5V DC



NZXT RGB Channel Output LED Qty.

Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels



Compatible Socket & CPU

Intel

Intel Socket LGA 1700, 1200/115X

Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron



AMD

AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)

AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
