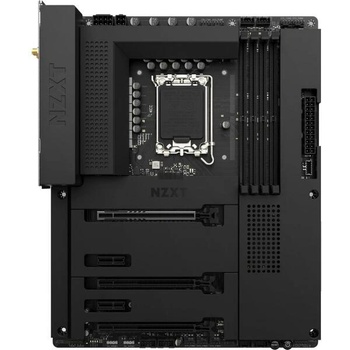

NZXT N7 Z790 B1

The N7 Z790 supports Intel's latest CPUs and has everything needed to build a modern system. The full black or white cover blends seamlessly within your build and includes optimally placed headers and built-in fan & lighting controls via NZXT CAM.

The Latest and Greatest

The N7 Z790 allows for a great look without sacrificing the build experience with an integrated rear I/O and optimally placed headers.

Stunning Craftsmanship

Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your prized components.

Powerful Control

The N7 Z790 includes key features from the NZXT RGB and Fan Controller, allowing intuitive control of six RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported as well as 5V ARGB.

• 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB


• Full cover in black or white with integrated heat spreader for the top-most M. 2 slot


• Digital RGB lighting control through CAM for numerous preset and custom modes


• Convenient fan profiles within NZXT CAM for seven independent fan channels


• Integrated rear I/O shield and efficient layout for optimal setup


• Compatible with Intel® 13th and 12th Generation Core i9, Core i7, Core i5 processors


• Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2


• Three M. 2 connectors for storage devices


• Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0


• 8-channel high-definition audio



CPU & Socket

Intel Socket LGA 1700 for Intel 13th and 12th Generation Processors

Intel Hybrid Technology

Turbo Boost Max 3.0 Technology

Intel Thermal Velocity Boost (TVB)

Intel Adaptive Boost Technology (ABT)



Chipset

Intel Z790



Memory

4x DIMM Slots, DDR5 only



Max Memory Support

128GB, DDR5

Memory Architecture: Dual-Channel

OC Frequency:6000+(O. C. )

Intel Extreme Memory Profile (XMP) 3.0



Expansion Slots

1x PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode (Supports NVMe SSD as boot disks)

2x PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode (Supports NVMe SSD as boot disks)

2x PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2) (Supports NVMe SSD as boot disks)

1x M. 2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2



Storage

1x M. 2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode)

1x M. 2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode)

1x M. 2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode)

4x SATA 6Gb/s ports

Intel Volume Management Device (VMD)

NVMe SSD as boot disks



LAN

Realtek RTL8125BG 2.5G LAN



Wireless

Dual Band Wi-Fi 6E

Bluetooth V5.2



Audio

Realtek ALC1220 Codec



Rear I/O

2x Wireless antenna SMA connectors

1x HDMI port

2x USB 2.0

1x USB 3.2 Gen 2x2 Type-C port

2x USB 3.2 Gen 2 ports

3x USB 3.2 Gen 1 ports

1x Clear CMOS button

1x LAN (RJ45) port

5x Audio jacks

1x Optical S/PDIF Out port



Internal I/O

1x 24-pin ATX power connector

1x 8+4-pin ATX 12V power connector

1x 4-pin CPU_FAN connector

1x 4-pin AIO_PUMP connector

5x 4-pin SYS_FAN connectors

4x NZXT RGB LED connectors

2x 5V ARGB LED connector

2x USB 2.0 header (Up to 4 USB 2.0 ports)

1x USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports)

1x USB 3.2 Gen2x2 front panel header (For USB Type-C)

1x Front panel audio connector

1x Power button

1x Reset button

4x POST LEDs



General

Operating System

Windows 11/10 64-bit



Form Factor

ATX
