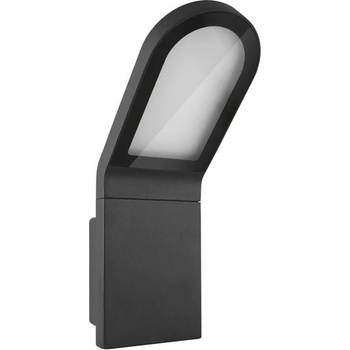

OSRAM LED градинско осветително тяло Ledvance O Facade Edge, 12W, 740lm, 3000K, IP54, за стена

Product benefits

• Energy-effi cient thanks to LED technology
• Easy and quick installation
• Homogeneous light output



Area s of application

• Outdoor< /li>
• Building facades
• Entrance lighting
• Gardens, balconies and other outdoor areas



Produ ct features

• Very bright and functional outdoor LED luminaires
• Type of protection: IP54
• Die-cast aluminum housing
• Available with and without motion sensor
• Available in two housing colors: white and dark gray
• Diffuser made of opal polycarbonate with clear glass cover



Electrical data

Nominal wattage 12.00 WNominal voltage 220…240 VMains frequency 50…60 HzNominal current 96 mAMax. number of luminaires per miniature circuit breaker B16 33Max. number of luminaires per miniature circuit breaker C10 42Max. number of luminaires per miniature circuit breaker C16 26Power factor λ > 0.5Protection class IOperating mode Mains voltage

Photometrical data

Luminous flux 740 lmLuminous efficacy 60 lm/WColor temperature 3000 KLight color (designation) Warm WhiteColor rendering index Ra ≥80Standard deviation of color matching < 6 sdcmPhotobiological safety group acc. to EN62778 RG0Photobiological safety group acc. to EN62471 RG0Beam angle 110 °

Dimensions

Length 168.00 mmHeight 273.00 mmWidth 100.00 mm

Materials

Body material AluminumCover material GlassMercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °CType of connection Screw terminal, 3-PoleType of protection IP54Protection class IK (shock resistance) IK06Dimmable NoMounting type SurfaceMounting location WallApplication environment OutdoorLED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 hNumber of switching cycles 15000

Certificates & Standards

Standards CEBall shot safe No



Характеристики

Мощност 12W Светлинен поток 740lm Цветна температура 3000K IP защита IP54
