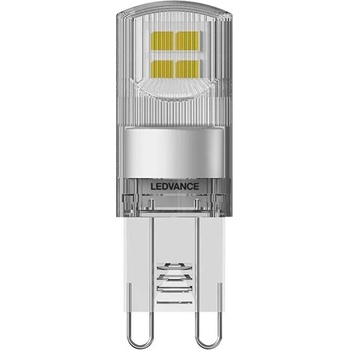

OSRAM LED крушка Ledvance AC32109, G9, 1.9W, 200lm, 2700K (AC32109)

Product benefits

• Good all-around light emission
• Long lifetime of up to 15,000 h
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Atmosphe ric accent lighting throughout the home
• Shops, hotels and restaurants
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED alternative to conventional high voltage lamps
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Safety advice

• To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.



Specifications



Electrical data

Nominal wattage 1.9 WConstruction wattage 1.90 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 20 WNominal current 16 mAType of current ACInrush current 3.84 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 27Max. lamp number on MCB B16 A 32Total harmonic distortion 141 %Power factor λ > 0.40

Photometrical data

Luminous flux 200 lmNominal useful luminous flux 90° 200 lmLuminous efficacy 105 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra ≥80Light color 827Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 59 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G9Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)Energy consumption 2.00 kWh/1000hType of protection IP20Standards CE, EACPhotobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference LED PIN20 1.9W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) G9Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0.00 WNetworked standby power for CLS 0 WClaim of equivalent power YesLength 46.00 mmHeight 15.00 mmWidth 15.00 mmChromaticity coordinate x 0.458Chromaticity coordinate y 0.410R9 Colour rendering index 0.00Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor 0.00LED light source replaces a fluorescent light source NoEPREL ID 522874Model number AC32109
