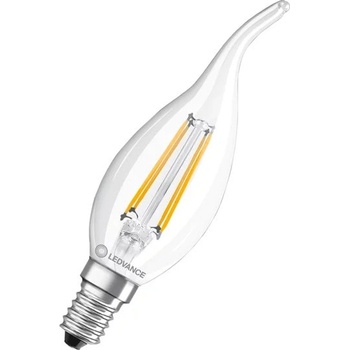

OSRAM LED крушка Ledvance AC32454, E14, 4W, 470lm, 2700K (AC32454)

Product benefits

• Lamps with innovative LED "filament" technology
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Lower energy consumption than incandescent or halogen lamps
• No UV and near-IR radiation in the light beam
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs



Areas of application

• Perfect for decorative installations
• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only



Produc t features

• Professiona l LED lamps for line voltage
• Beam angle: up to 300°
• Not dimmable
• Base: E14
• Lifetime: up to 15,000 h
• Lamp made of glass
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Specifications



Electrical data

Nominal wattage 4 WConstruction wattage 4.00 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 40 WNominal current 32 mAType of current ACInrush current 1.5 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 300Max. lamp number on MCB B16 A 480Power factor λ > 0.50

Photometrical data

Luminous flux 470 lmNominal useful luminous flux 90° 470 lmLuminous efficacy 117 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 80Light color 827Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) ≤1Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 121.00 mmDiameter 35.00 mmMaximum diameter 35 mmProduct weight 15.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)Energy consumption 4.00 kWh/1000hType of protection IP20Standards CEPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E14Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 121.00 mmHeight 35.00 mmWidth 35.00 mmChromaticity coordinate x 0.436Chromaticity coordinate y 0,420R9 Colour rendering index 0.00Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor ≥0.5LED light source replaces a fluorescent light source NoEPREL ID 523064Model number AC32454
