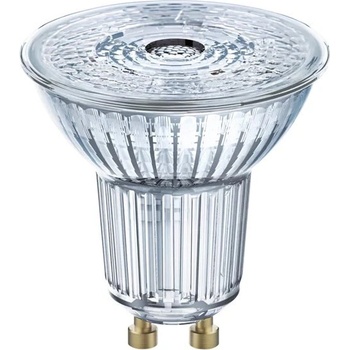

OSRAM LED крушка Ledvance AC32730, GU10, PAR16, 8.3W, 575lm, 2700К (AC32730)

Product benefits

• Quick, simple and safe replacement without rewiring
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Low maintenance costs thanks to long lifetime
• No UV and near-IR radiation in the light beam
• Stepless dimming
• Instant 100 % light, no warm-up time
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Shops and exhibition rooms
• Domestic applications
• Commercial applications
• Accent lighting
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED alternative to high voltage halogen lamps
• High color consistency: ≤ 5 SDCM
• Dimmable
• Lamp made of glass
• Very high color rendering (Ra: 90)



Specifications



Electrical data

Nominal wattage 8.3 WConstruction wattage 8.30 WNominal voltage 220…240 VClaimed equiv. conventional lamp power 80 WNominal current 46 mAType of current ACOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 117Max. lamp number on MCB B16 A 187Power factor λ 0.70

Photometrical data

Luminous intensity 840 cdLuminous flux 575 lmNominal useful luminous flux 90° 575 lmLuminous efficacy 69 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra ≥90Light color 927Standard deviation of color matching ≤5 sdcmRated peak intensity 840 cdRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 0.2Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 36 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 52.00 mmDiameter 50.00 mmMaximum diameter 50 mmProduct weight 56.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 105 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU10Mercury content 0.0 mgProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G 1)Energy consumption 9.00 kWh/1000hType of protection IP20Standards CE, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional DLSMains or non-mains MLSLight source cap-type (or other electric interface) GU10Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEClaim of equivalent power YesLength 52.00 mmHeight 50.00 mmWidth 50.00 mmChromaticity coordinate x 0.455Chromaticity coordinate y 0.405R9 Colour rendering index 40Beam angle correspondence NARROW_CONE_90Survival factor 0,9Displacement factor 0.70LED light source replaces a fluorescent light source NoEPREL ID 523004Model number AC32730
