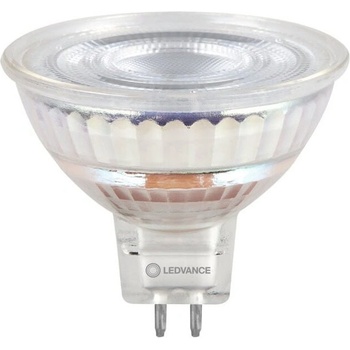

OSRAM LED крушка Ledvance AC45629, GU5.3, MR16, 6.5W, 621lm, 2700K (AC45629)

Product benefits

• Quick, simple and safe replacement without rewiring
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Low maintenance costs thanks to long lifetime
• No UV and near-IR radiation in the light beam
• Instant 100 % light, no warm-up time
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Shops and exhibition rooms
• Domestic applications
• Commercial applications
• Accent lighting
• Outdoor use in suitable outdoor luminaires only



Product features

• LED alternative to low voltage halogen lamps
• High color consistency: ≤ 6 SDCM
• Not dimmable
• Base: GU5.3
• Lamp made of glass
• Good quality of light; color rendering index CRI ≥ 80
• Lifetime up to 15,000 h



Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.





Technical data



Electrical data

Nominal wattage 6.5 WConstruction wattage 6.50 WNominal voltage 12 VOperating mode ECG, CCG 1)Claimed equiv. conventional lamp power 50 WNominal current 770 mAType of current AC/DCInrush current 24.8 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 24Max. lamp number on MCB B16 A 30Total harmonic distortion < 120 %Power factor λ 0.50

1) Check ECG compatibility at ledvance. com/compatibility




Photometrical data

Luminous intensity 1150 cdLuminous flux 621 lmNominal useful luminous flux 90° 621 lmLuminous efficacy 95 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 80Light color 827Standard deviation of color matching ≤6 sdcmRated peak intensity 1150 cdRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 1,0Stroboscope effect metric (SVM) 0,4



Light technical data

Beam angle 36 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s



Dimensions & Weight

Overall length 44.00 mmDiameter 50.00 mmMaximum diameter 50 mmProduct weight 38.00 g



Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 87.3 °C



Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90



Additional product data

Base (standard designation) GU5.3Mercury content 0.0 mgMercury-free YesProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value



Capabilities

Dimmabl e No



Certificates & Standards

Energy efficiency class F 1)Energy consumption 7.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)




LOGISTICAL DATA

Temperature range at storage -20…+80 °C



Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional DLSMains or non-mains NMLSLight source cap-type (or other electric interface) GU5.3Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WNetworked standby power for CLS 0 WClaim of equivalent power YesLength 44.00 mmHeight 50.00 mmWidth 50.00 mmChromaticity coordinate x 0,458Chromaticity coordinate y 0,410R9 Colour rendering index 1Beam angle correspondence NARROW_CONE_90Survival factor 0.9Displacement factor /LED light source replaces a fluorescent light source NoEPREL ID 1368234Model number AC45629



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
