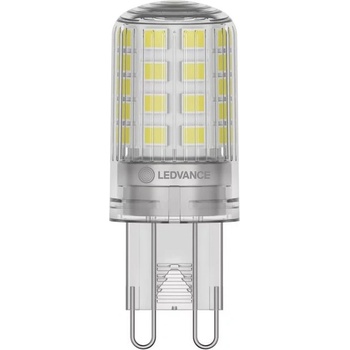

OSRAM LED крушка Ledvance AC58909, G9, 4.2W, 470lm, 2700K (AC58909)

Product benefits

• Good all-around light emission
• Long lifetime of up to 15,000 h
• Four year guarantee
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Atmosphe ric accent lighting throughout the home
• Shops, hotels and restaurants
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED alternative to conventional high voltage lamps
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Safety advice

• To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.



Specifications



Electrical data

Nominal wattage 4.2 WConstruction wattage 4.20 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 40 WNominal current 36 mAType of current ACInrush current 5.16 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 31Max. lamp number on MCB B16 A 40Total harmonic distortion < 166 %Power factor λ > 0.40

Photometrical data

Luminous flux 470 lmNominal useful luminous flux 90° 470 lmLuminous efficacy 111 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 80Light color 827Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) G9Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)Energy consumption 5.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference LED PIN40 4.2W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) G9Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 49.00 mmHeight 18.00 mmWidth 18.00 mmChromaticity coordinate x 0.458Chromaticity coordinate y 0.410R9 Colour rendering index 11Beam angle correspondence SPHERE_360Survival factor 0.9Displacement factor 0.5LED light source replaces a fluorescent light source NoEPREL ID 1856544Model number AC58909, AC58909
