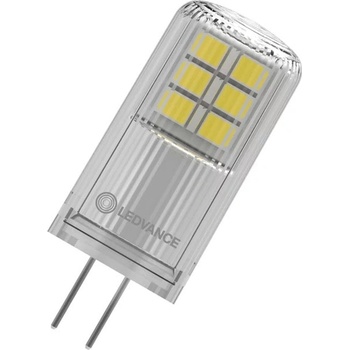

OSRAM LED крушка Ledvance AC58933, G4, 2.2W, 300lm, 2700K (AC58933)

Product benefits

• Variable use at Direct Current and Alternating Current
• Good all-around light emission
• Ideal for decorative and free-burning applications
• Long lifetime of up to 15,000 h
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Decorati ve applications
• Atmospheric accent lighting throughout the home
• Shops, hotels and restaurants
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED alternative to low voltage halogen lamps
• Base: G4, GY6.35



Safe ty advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.
• To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.



Specifications



Electrical data

Nominal wattage 2.2 WConstruction wattage 2.20 WNominal voltage 12 VOperating mode 12V AC/DCClaimed equiv. conventional lamp power 28 WNominal current 280 mAType of current AC/DCInrush current 17.7 AMax. lamp number on MCB B10 A 33Max. lamp number on MCB B16 A 42Total harmonic distortion < 120 %Power factor λ > 0.50

Photometrical data

Luminous flux 300 lmNominal useful luminous flux 90° 300 lmLuminous efficacy 136 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 80Light color 827Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 36.00 mmDiameter 14.00 mmMaximum diameter 14 mmProduct weight 4.5 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 77.6 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) G4Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)Energy consumption 3.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains NMLSLight source cap-type (or other electric interface) G4Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 36.00 mmHeight 14.00 mmWidth 14.00 mmChromaticity coordinate x 0.458Chromaticity coordinate y 0.410R9 Colour rendering index 6Beam angle correspondence SPHERE_360Survival factor 0.9Displacement factor 0.5LED light source replaces a fluorescent light source NoEPREL ID 1856530Model number AC58933
