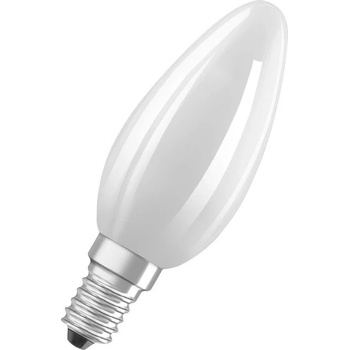

OSRAM LED крушка Ledvance Classic B 60 P 827 Frosted, E14, 5.5W, 806lm, 2700K (AC32363)

Product benefits

• Lamps with innovative LED "filament" technology
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• No UV and near-IR radiation in the light beam
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs
• Lower thermal output (compared with the standard reference product)
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Perfect for decorative installations
• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only



Produc t features

• Professiona l LED lamps for line voltage
• Beam angle: up to 300°
• Not dimmable
• Base: E14
• Lifetime: up to 15,000 h
• Lamp made of glass
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.



Specifications



Electrical data

Nominal wattage 5.5 WConstruction wattage 5.50 WNominal voltage 220…240 VClaimed equiv. conventional lamp power 60 WNominal current 33 mAType of current ACInrush current 0.3 AOperating frequency 50…60 HzMains frequency 50…60 HzMax. lamp number on MCB B10 A 1500Max. lamp number on MCB B16 A 2400Power factor λ > 0.50

Photometrical data

Luminous flux 806 lmNominal useful luminous flux 90° 806 lmLuminous efficacy 146 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra ≥80Light color 827Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.9

Light technical data

Beam angle 300 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mmDiameter 35.00 mmMaximum diameter 35 mmProduct weight 16.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 70 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14Mercury content 0.0 mgMercury-free YesDesign / version FrostedProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)Energy consumption 6.00 kWh/1000hType of protection IP20Standards CE, EACPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E14Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEClaim of equivalent power YesLength 100.00 mmHeight 35.00 mmWidth 35.00 mmChromaticity coordinate x 0.463Chromaticity coordinate y 0.420R9 Colour rendering index >0Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor 0.50LED light source replaces a fluorescent light source NoEPREL ID 523153Model number AC32363
