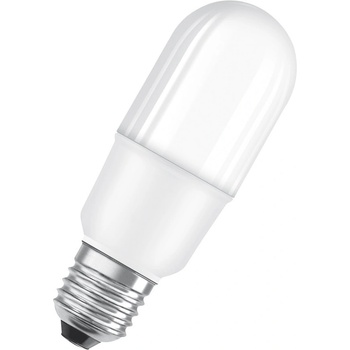

OSRAM LED крушка Ledvance Classic Stick 75 P 9.5W 840 Frosted, E27, 9.5W, 1055lm, 4000K (AC31138)

Electrical data

Nominal wattage 9.5 WConstruction wattage 9.50 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 75 WNominal current 68 mAType of current ACInrush current 7.04 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 30Max. lamp number on MCB B16 A 36Total harmonic distortion 107 %Power factor λ > 0.50

Photometrical data

Luminous flux 1055 lmLuminous efficacy 111 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Cool WhiteColor temperature 4000 KColor rendering index Ra 80Light color 840Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 200 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 118.00 mmDiameter 37.00 mmMaximum diameter 37 mmProduct weight 28.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27Mercury content 0.0 mgMercury-free YesDesign / version FrostedProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)Energy consumption 10.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -40…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E27Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0.00 WClaim of equivalent power YesLength 118.00 mmHeight 37.00 mmWidth 37.00 mmChromaticity coordinate x 0.382Chromaticity coordinate y 0.380R9 Colour rendering index 1Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor 0.7LED light source replaces a fluorescent light source No
