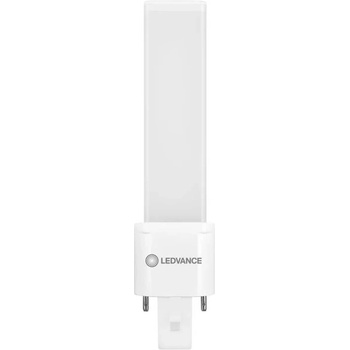

OSRAM LED крушка Ledvance Dulux LED S7 EM & AC Mains V, G23, 3.5W, 400lm, 4000K (AC46407)

Product benefits

• Easy installation
• Low energy consumption
• Easy relamping thanks to compact design
• Operation directly on 230 V AC mains possible



Ar eas of application

• General illumination within ambient temperatures from -20…+45 °C
• Supermarkets and department stores
• Walkways and corridors
• Hotels, restaurants



Product features

• LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
• Lifetime: up to 30,000 h
• Single-ended two-pin plug-in G23 base
• Type of protection: IP20
• Mercury-free lamps



Safet y advice

• Suitable for tandem operation.
• The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc max temperature on the product prior to installation.
• All electrical connections must be made by a qualified person.
• Do not touch the lamp with bare fingers.
• Must not be used if outer bulb is defective.
• Lamp not suitable for emergency operation.



Specifications



Electrical data

Nominal wattage 3.5 WConstruction wattage 3.50 WNominal voltage 220…240 VOperating mode CCG, AC MainsClaimed equiv. conventional lamp power 7 WNominal current 16 mAType of current ACInrush current 4 ASuitable for DC input YesInput voltage DC 186…260 V 1)Operating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 21Max. lamp number on MCB B10 A - CCG without compensation 16Max. lamp number on MCB B10 A - CCG with compensation 17Max. lamp number on MCB B16 A 26Max. lamp number on MCB B16 A - CCG without compensation 26Max. lamp number on MCB B16 A - CCG with compensation 29Total harmonic distortion ≤ 30 %Power factor λ > 0.90

1) Permitted voltage range


Photometrical data

Luminous flux 400 lmNominal useful luminous flux 90° 400 lmLuminous efficacy 114 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Cool WhiteColor temperature 4000 KColor rendering index Ra 80Light color 840Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 120 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 135.00 mmDiameter 32.30 mmTube diameter 26,0 mmMaximum diameter 33 mmProduct weight 36.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)Maximum temperature at tc test point 75 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire


Lifespan

Lifespan L70/B50 at 25 °C 30000 hNumber of switching cycles 200000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G23Mercury content 0.0 mgMercury-free YesDesign / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)Energy consumption 4.00 kWh/1000hType of protection IP20Standards CE, EAC, UKCAPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)


LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) G23Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEClaim of equivalent power NoLength 135.00 mmHeight 32.30 mmWidth 32.30 mmChromaticity coordinate x 0.381Chromaticity coordinate y 0.379R9 Colour rendering index 0.00Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor 0.90LED light source replaces a fluorescent light source No
