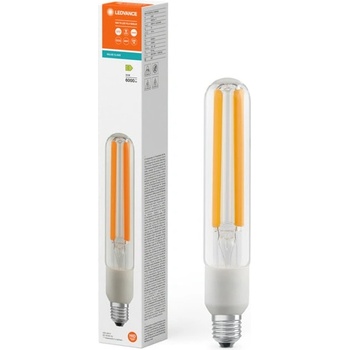

OSRAM LED крушка Ledvance NAV 70 LED FILAMENT V 740, E27, 35W, 6000lm, 4000K (AC46363)

Product benefits

• Same design as traditional NAV lamps with clear, tubular full glass bulb
• Full use of reflector of existing luminaire thanks to 360 degree beam angle
• Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
• Instant 100 % light, no warm-up time
• Similar light distribution as traditional NAV lamps



Areas of application

• Streets
• A rea lighting
• Pedestrian zones
• Parks
• Outdoor applications only in suitable luminaires



Product features

• Suitable for operation with conventional control gear (CCG) or 230 V AC mains
• Very high efficiency of up to 190 lm/W
• Power factor: 0.9
• Type of protection: IP65
• Surge protection: up to 2 kV (L-N)



Safety advice

• Not suitable for operation with ignitors.
• Operation on the capacitor can lead to a reduction of the power factor of the system.
• When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
• Use in tight luminaires and luminaires with tight reflectors not recommended.
• Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
• All electrical connections must be made by a qualified person.





Technical data



Electrical data

Nominal wattage 35 WConstruction wattage 35.00 WNominal voltage 220…240 VOperating mode CCG, AC MainsClaimed equiv. conventional lamp power 70 WNominal current 155 mAType of current ACInrush current 11.1 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 11Max. lamp number on MCB B10 A - CCG without compensation 16Max. lamp number on MCB B10 A - CCG with compensation 6Max. lamp number on MCB B16 A 14Max. lamp number on MCB B16 A - CCG without compensation 20Max. lamp number on MCB B16 A - CCG with compensation 8Total harmonic distortion 12 %Power factor λ > 0.90Surge capability (L-N) 2 kV



Photometrical data

Luminous intensity Not relevantLuminous flux 6000 lmNominal useful luminous flux 90° 6000 lmLuminous efficacy 171 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Cool WhiteColor temperature 4000 KColor rendering index Ra 70Light color 740Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 1Stroboscope effect metric (SVM) 0,4



Light technical data

Beam angle 360 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s



Dimensions & Weight

Overall length 210.00 mmDiameter 38.00 mmMaximum diameter 38 mmProduct weight 120.00 g



Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)Maximum temperature at tc test point 90 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire




Lifespan

Lifesp an L70/B50 at 25 °C 25000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90



Additional product data

Base (standard designation) E27Mercury content 0.0 mgMercury-free Yes



Capabilities

Dimmable No



Certificates & Standards

Energy efficiency class C 1)Energy consumption 35.00 kWh/1000hType of protection IP65Standards CE, EAC, UKCAPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C



Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E27Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEClaim of equivalent power NoLength 210.00 mmHeight 38.00 mmWidth 38.00 mmChromaticity coordinate x 0.382Chromaticity coordinate y 0,38R9 Colour rendering index 1Beam angle correspondence SPHERE_360Survival factor 0.9Displacement factor 0.9LED light source replaces a fluorescent light source NoEPREL ID 1371178Model number AC46363



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
