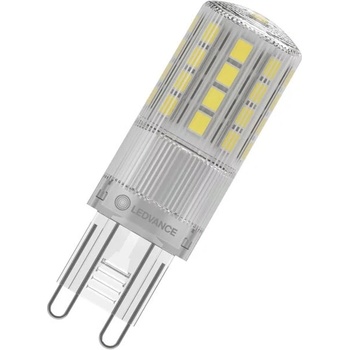

OSRAM LED крушка Ledvance PIN 48 320° P 827 Clear, G9, 4.5W, 600lm, 2700K (AC58953)

Product benefits

• Good all-around light emission
• Long lifetime of up to 15,000 h
• Four year guarantee
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Atmosphe ric accent lighting throughout the home
• Shops, hotels and restaurants
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED alternative to conventional high voltage lamps
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.
• To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.



Specifications



Electrical data

Nominal wattage 4.5 WConstruction wattage 4.50 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 48 WNominal current 34 mAType of current ACInrush current 5.2 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 92Max. lamp number on MCB B16 A 116Total harmonic distortion < 200 %Power factor λ ≥ 0.40

Photometrical data

Luminous flux 600 lmNominal useful luminous flux 90° 600 lmLuminous efficacy 133 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 80Light color 827Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 55.00 mmDiameter 17.00 mmMaximum diameter 17 mmProduct weight 10.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 101 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) G9Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)Energy consumption 5.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) G9Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 55.00 mmHeight 17.00 mmWidth 17.00 mmChromaticity coordinate x 0.458Chromaticity coordinate y 0.410R9 Colour rendering index 6Beam angle correspondence SPHERE_360Survival factor 0.9Displacement factor 0.4LED light source replaces a fluorescent light source NoEPREL ID 1856535Model number AC58953
