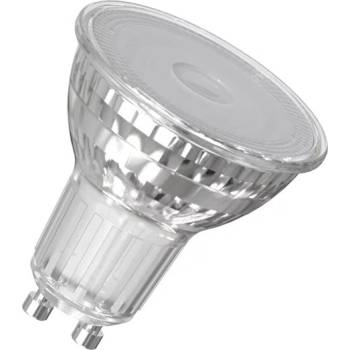

OSRAM LED крушка Ledvance Value PAR16 80 120° 830, GU10, PAR16, 6.9W, 620lm, 3000K (AC32750)

Product benefits

• Quick, simple and safe replacement without rewiring
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Low maintenance costs thanks to long lifetime
• No UV and near-IR radiation in the light beam
• Instant 100 % light, no warm-up time
• Lower energy consumption than incandescent or halogen lamps



Areas of application

• Shops and exhibition rooms
• Domestic applications
• Commercial applications
• Accent lighting
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED alternative to high voltage halogen lamps
• Not dimmable
• Base: GU10
• Lamp made of glass
• Good quality of light; color rendering index Ra: ≥ 80



Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.



Specifications



Electrical data

Nominal wattage 6.9 WConstruction wattage 6.90 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 49 WNominal current 50 mAType of current ACInrush current 4.84 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 116Max. lamp number on MCB B16 A 184Total harmonic distortion 150 %Power factor λ > 0.50

Photometrical data

Luminous intensity 200 cdLuminous flux 620 lmLuminous efficacy 90 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Warm WhiteColor temperature 3000 KColor rendering index Ra 80Light color 830Standard deviation of color matching ≤6 sdcmRated peak intensity 200 cdFlickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 120 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mmDiameter 50.00 mmMaximum diameter 50 mmProduct weight 39.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 97.5 °C

Lifespan

Lifespan L70/B50 at 25 °C 10000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) GU10Mercury content 0.0 mgMercury-free YesProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)Energy consumption 7.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) GU10Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 54.00 mmHeight 50.00 mmWidth 50.00 mmChromaticity coordinate x 0.4338Chromaticity coordinate y 0.4030R9 Colour rendering index 3Beam angle correspondence SPHERE_360Survival factor 0.9Displacement factor 0.70LED light source replaces a fluorescent light source No
