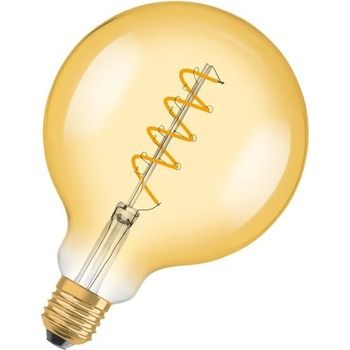

OSRAM LED крушка Ledvance Vintage 1906 Globe 28 Filament 820 Gold, E27, 4W, 300lm, 2000K (AC32397)

Product benefits

• Lower energy consumption than incandescent or halogen lamps
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs
• Lamps with innovative LED "filament" technology



Areas of application

• Perfect for decorative installations
• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only



Product features

• LED lamps for line voltage
• Lamp made of glass
• Lifetime up to 15,000 h
• Beam angle: up to 360°
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.





Technical data



Electrical data

Nominal wattage 4 WConstruction wattage 4.00 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 28 WNominal current 32 mAType of current ACInrush current 1.5 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 400Max. lamp number on MCB B16 A 480Power factor λ > 0.50



Photometrical data

Luminous flux 300 lmNominal useful luminous flux 90° 250 lmLuminous efficacy 75 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm Comfort LightColor temperature 2000 KColor rendering index Ra 80Light color 820Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) ≤1Stroboscope effect metric (SVM) ≤0.4



Light technical data

Beam angle 300 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s



Dimensions & Weight

Overall length 168.00 mmDiameter 124.00 mmMaximum diameter 124 mmProduct weight 95.00 g



Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 65 °C



Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90



Additional product data

Base (standard designation) E27Mercury content 0.0 mgMercury-free YesDesign / version Clear goldProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value



Capabilities

Dimmabl e No



Certificates & Standards

Energy efficiency class G 1)Energy consumption 4.00 kWh/1000hType of protection IP20Standards CE, EACPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C



Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E27Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 168.00 mmHeight 124.00 mmWidth 124.00 mmChromaticity coordinate x 0,527Chromaticity coordinate y 0,413R9 Colour rendering index 1Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor ≥0.4LED light source replaces a fluorescent light source NoEPREL ID 523246Model number AC32397



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
