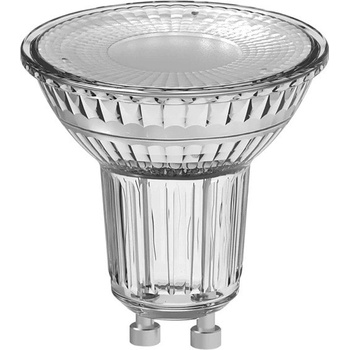

OSRAM LED крушка Osram AC32705, GU10, 4.3W, 350lm, 4000K (AC32705)

Electrical data

Nominal wattage 4.3 WConstruction wattage 4.30 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 50 WNominal current 38 mAType of current ACInrush current 7 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 41Max. lamp number on MCB B16 A 52Total harmonic distortion 150 %Power factor λ > 0.40

Photometrical data

Luminous intensity 600 cdLuminous flux 350 lmNominal useful luminous flux 90° 350 lmLuminous efficacy 81 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Cool WhiteColor temperature 4000 KColor rendering index Ra 80Light color 840Standard deviation of color matching ≤6 sdcmRated peak intensity 600 cdRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) ≤1Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 36 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mmDiameter 50.00 mmMaximum diameter 50 mmProduct weight 40.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 10000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU10Mercury content 0.0 mgMercury-free YesProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class FEnergy consumption 5.00 kWh/1000hType of protection IP20Standards CE, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)


LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional DLSMains or non-mains MLSLight source cap-type (or other electric interface) GU10Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 54.00 mmHeight 50.00 mmWidth 50.00 mmChromaticity coordinate x 0.382Chromaticity coordinate y 0.380R9 Colour rendering index 8Beam angle correspondence NARROW_CONE_90Survival factor 0.90Displacement factor >0.4LED light source replaces a fluorescent light source No
