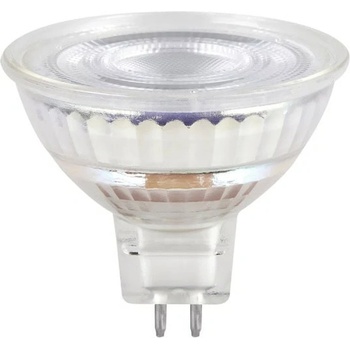

OSRAM LED крушка Osram AC42776, GU5.3, 3.8W, 345lm, 2700K (AC42776)

Electrical data

Nominal wattage 3.8 WConstruction wattage 3.80 WNominal voltage 12 VOperating mode 12V AC/DCClaimed equiv. conventional lamp power 35 WNominal current 460 mAType of current AC/DCInrush current 12.8 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 28Max. lamp number on MCB B16 A 36Total harmonic distortion < 120 %Power factor λ > 0.50

Photometrical data

Luminous intensity 700 cdLuminous flux 345 lmNominal useful luminous flux 90° 345 lmLuminous efficacy 90 lm/WLumen main. fact. at end of nom. life time 0.95Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 80Light color 827Standard deviation of color matching ≤6 sdcmRated peak intensity 700 cdRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 1Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 36 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 44.00 mmDiameter 50.00 mmMaximum diameter 50 mmProduct weight 30.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 83.1 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.95Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU5.3Mercury content 0.0 mgMercury-free YesProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class FEnergy consumption 4.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional DLSMains or non-mains NMLSLight source cap-type (or other electric interface) GU5.3Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WClaim of equivalent power YesLength 44.00 mmHeight 50.00 mmWidth 50.00 mmChromaticity coordinate x 0,458Chromaticity coordinate y 0,410R9 Colour rendering index 1Beam angle correspondence NARROW_CONE_90Survival factor 0,90Displacement factor /LED light source replaces a fluorescent light source No
