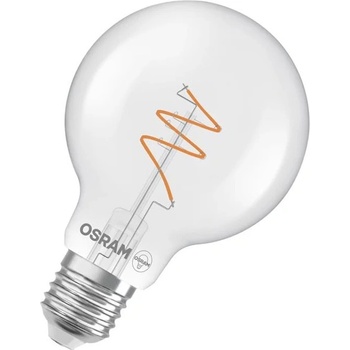

OSRAM LED крушка Osram AC58085, E27, 4.6W, 470lm, 2700K (AC58085)

Product benefits

• Lower energy consumption than incandescent or halogen lamps
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs
• Lamps with innovative LED "filament" technology



Areas of application

• Perfect for decorative installations
• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only



Produc t features

• LED lamps for line voltage
• Lamp made of glass
• Lifetime: up to 15,000 h
• Beam angle: up to 360°
• Dimmable
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Specifications



Electrical data

Nominal wattage 4.6 WConstruction wattage 4.60 WNominal voltage 220…240 VOperating mode AC MainsClaimed equiv. conventional lamp power 40 WNominal current 27.4 mAType of current ACInrush current 0.22 AOperating frequency 50/60 HzMains frequency 50/60 HzMax. lamp number on MCB B10 A 136Max. lamp number on MCB B16 A 218Total harmonic distortion ≤ 120 %Power factor λ ≥ 0.50

Photometrical data

Luminous flux 470 lmLuminous efficacy 102 lm/WLumen main. fact. at end of nom. life time 0.93Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra 90Light color 927Standard deviation of color matching ≤6 sdcmFlickering metric (Pst LM) ≤1Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °Warm-up time (60 %) ≤ 0.50 sStarting time < 0.5 s

Dimensions & Weight

Overall length 123.00 mmDiameter 80.00 mmMaximum diameter 80 mmProduct weight 40.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °CMaximum temperature at tc test point 46 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E27Mercury content 0.0 mgMercury-free YesDesign / version ClearProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance. com/compatibility


Certificates & Standards

Energy efficiency class F 1)Energy consumption 5.00 kWh/1000hType of protection IP20Standards CE, UKCA, EACPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)


Country-specific categorizations

Order reference 1906LGL80D 4,6W

LOGISTICAL DATA

Temperature range at storage -40…+85 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E27Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0 WNetworked standby power for CLS Not relevantClaim of equivalent power YesLength 123.00 mmHeight 80.00 mmWidth 80.00 mmChromaticity coordinate x 0.458Chromaticity coordinate y 0.410R9 Colour rendering index 62Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor ≥0.5LED light source replaces a fluorescent light source No
