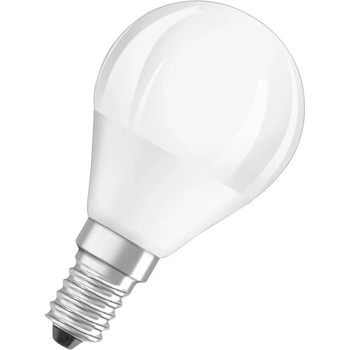

OSRAM LED крушка Osram Classic P 40 DIM P 827 Frosted, E14, 4.9W, 470lm, 2700K (AC31130)

Electrical data

Nominal wattage 4.9 WConstruction wattage 4.90 WNominal voltage 220…240 VClaimed equiv. conventional lamp power 40 WNominal current 30 mAType of current ACInrush current 0.2 AOperating frequency 50…60 HzMains frequency 50…60 HzMax. lamp number on MCB B10 A 266Max. lamp number on MCB B16 A 426Total harmonic distortion 150 %Power factor λ > 0.50

Photometrical data

Luminous flux 470 lmNominal useful luminous flux 90° 470 lmLuminous efficacy 95 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra ≥80Light color 827Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80Flickering metric (Pst LM) 1.0Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 240 °Warm-up time (60 %) ‹ 1.00 sStarting time < 0.5 s

Dimensions & Weight

Overall length 80.00 mmDiameter 45.00 mmMaximum diameter 45 mmProduct weight 18.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 105 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 hNumber of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14Mercury content 0.0 mgMercury-free YesDesign / version FrostedProduct remark Dimmable (with many common dimmers, see also www. ledvance. com/dim), All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class FEnergy consumption 5.00 kWh/1000hType of protection IP20Standards CE, ROHS, REACH, ERPPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)



LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LEDNon-directional or directional NDLSMains or non-mains MLSLight source cap-type (or other electric interface) E14Connected light source (CLS) NoColor-tuneable light source NoEnvelope NoHigh luminance light source NoAnti-glare shield NoCorrelated colour temperature type SINGLE_VALUEStandby power 0.00 WClaim of equivalent power YesLength 80.00 mmHeight 45.00 mmWidth 45.00 mmChromaticity coordinate x 0.458Chromaticity coordinate y 0.410R9 Colour rendering index 1Beam angle correspondence SPHERE_360Survival factor 0.90Displacement factor 0.90LED light source replaces a fluorescent light source No
