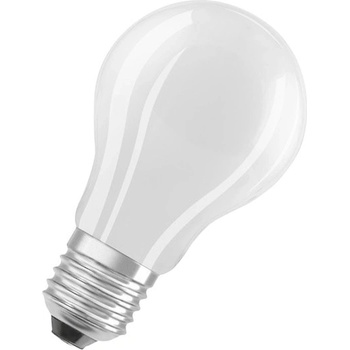

OSRAM LED крушка Osram P CLAS A 75, E27, 9W, 1055lm, 2700K (AC24271)

Product benefits

• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Lower energy consumption than incandescent or halogen lamps
• Robust against vibrations
• No UV and near-IR radiation in the light beam
• Instant 100 % light, no warm-up time
• Can be easily fitted instead of ordinary light bulbs



Areas of application

• Perfect for decorative installations
• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only



Product features

• Professional LED lamps for line voltage
• Beam angle: up to 300°
• Dimmable
• Base: E27, B22d
• Lifetime up to 15,000 h
• Lamp made of glass
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity



Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.





Technical data



Electrical data

Nominal wattage 9 WConstruction wattage 9.00 WNominal voltage 220…240 VClaimed equiv. conventional lamp power 75 WNominal current 52 mAType of current ACInrush current 0.12 AOperating frequency 50…60 HzMains frequency 50…60 HzMax. lamp number on MCB B10 A 65Max. lamp number on MCB B16 A 105Power factor λ > 0.50



Photometrical data

Luminous intensity - cdLuminous flux 1055 lmNominal useful luminous flux 90° 1055 lmLuminous efficacy 117 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra ≥80Light color 827Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80



Light technical data

Beam angle 320 °Warm-up time (60 %) ‹ 0.50 sStarting time < 0.5 s



Dimensions & Weight

Overall length 105.00 mmDiameter 60.00 mmMaximum diameter 60 mmProduct weight 32.00 g



Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 65 °C



Lifespan

Number of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90



Additional product data

Base (standard designation) E27Mercury content 0.0 mgMercury-free YesDesign / version FrostedProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)



Capabilities

Di mmable Yes



Certificates & Standards

Energy efficiency class E 1)Energy consumption 9.00 kWh/1000hType of protection IP20Standards CEPhotobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)



Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27Correlated colour temperature type SINGLE_VALUELength 105.00 mmHeight 60.00 mmWidth 60.00 mmEPREL ID 1403362Model number AC24271



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)Minimum percentage of recycled content in the product 0 % 1)
