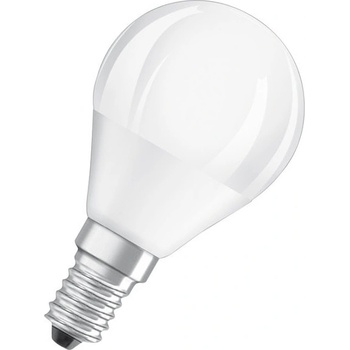

OSRAM LED крушка Osram P CLAS P 40, E14, 4.5W, 470lm, 2700K (AC24727)

Product benefits

• Low energy consumption
• High color consistency thanks to narrow binning
• Easy replacement of classic lamps thanks to compact design



Areas of application

• Domestic applications
• General illumination
• Outdoor use in suitable outdoor luminaires only



Product features

• Professional LED lamps for line voltage
• Dimmable
• Long lifetime up to 25,000 h
• Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity





Technical data



Electrical data

Nominal wattage 4.5 WConstruction wattage 4.50 WNominal voltage 220…240 VClaimed equiv. conventional lamp power 40 WNominal current 30 mAType of current ACInrush current 5 AOperating frequency 50…60 HzMains frequency 50…60 HzMax. lamp number on MCB B10 A 100Max. lamp number on MCB B16 A 160Power factor λ > 0.70



Photometrical data

Luminous flux 470 lmNominal useful luminous flux 90° 470 lmLuminous efficacy 104 lm/WLumen main. fact. at end of nom. life time 0.70Light color (designation) Warm WhiteColor temperature 2700 KColor rendering index Ra ≥80Light color 827Standard deviation of color matching ≤6 sdcmRated LLMF at 6,000 h 0.80



Light technical data

Beam angle 240 °Warm-up time (60 %) ‹ 1.00 sStarting time < 0.5 s



Dimensions & Weight

Overall length 78.00 mmDiameter 45.00 mmMaximum diameter 45 mmProduct weight 17.00 g



Temperatures & operating conditions

Ambient temperature range -20…+40 °CMaximum temperature at tc test point 99.8 °C



Lifespan

Number of switching cycles 100000Lumen maintenance at end of service lifetime 0.70Rated lamp survival factor at 6,000 h ≥ 0.90



Additional product data

Base (standard designation) E14Mercury content 0.0 mgMercury-free YesDesign / version FrostedProduct remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, In preparation



Capabilities

D immable Yes



Certificates & Standards

Energy efficiency class F 1)Energy consumption 5.00 kWh/1000hType of protection IP20Standards CE, ROHS, ERPPhotobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)




Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E14Correlated colour temperature type SINGLE_VALUELength 78.00 mmHeight 45.00 mmWidth 45.00 mmEPREL ID 1403240Model number AC24727



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mgQuantity of rare earths Contains at least 1 mg
